John Deere Komatsu pressure diagnostic kit

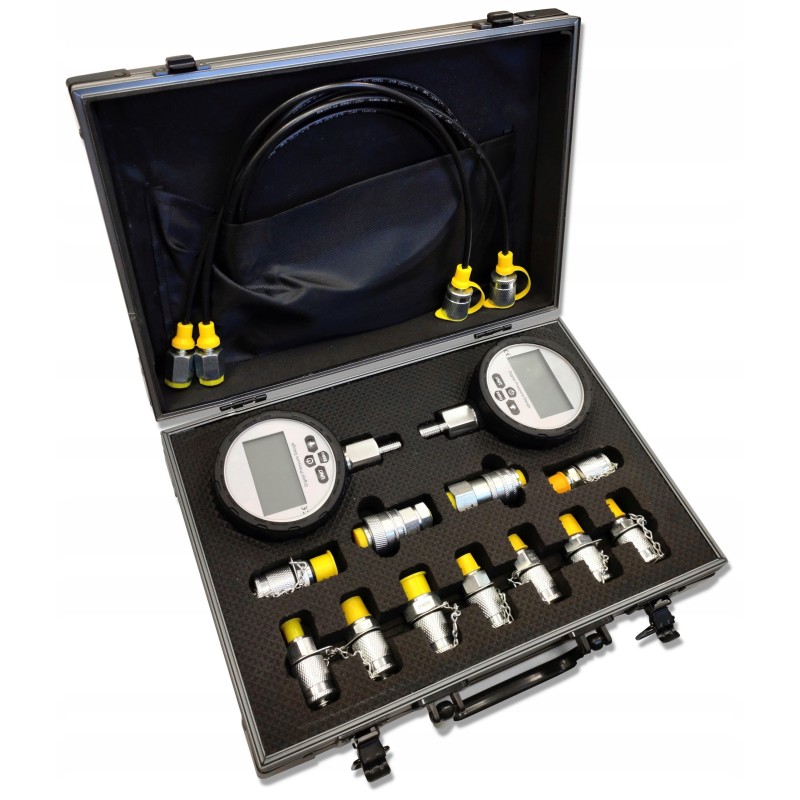

Hydraulic pressure diagnostic kit SKRAW-MET CODE: [2872] This kit is a simple kit for testing hydraulic pressure. It contains two digital pressure gauges, two hoses and eleven test connectors (including two dedicated ones). It provides reliable pressure measurement results, each element it is very easy to connect and use.

Box dimensions: thickness - 85 mm

width - 315 mm

height - 215 mm

PREMIUM QUALITY The complete diagnostic kit includes: protective plastic case

2x Pressure gauge 0-700 bar Φ80 mm - G1/4' with sheaths

2x DN02 test cable, 1.5 m long, M16x2 - G1/4'

Measuring connection G1/8'

Measuring connection G1/4'

Measuring connection G3/8'

Measuring connection M10x1

Measuring connection M10x1.25

Measuring connection M14x1.5

Measuring connection 7/16-20 UNF

Measuring connection 9/16-18 UNF

Measuring connection 1/4 NPTF

and dedicated connections: BSP measuring connection 1/8 F for machines CATerpillar / CASE / John Deere

BSP 1/4 F measuring connection for KOMATSU / HITACHI machines

Features and properties of the diagnostic kit: The kit is supplied with two digital pressure gauges, maximum working pressure: 700 BAR, they ensure accurate pressure measurement, efficiency and convenience .

The hydraulic pressure gauges included in the case work with replaceable test fittings of the following sizes 1/4 NPTF, G1/4', G3/8', G1/8', 7/16-20 UNF, 9/16-18 UNF, M10x1, M10x1.25, M14x1.5

Test hoses are made of nylon (inner), aramid fiber (middle) and polyurethane (outer), are resistant to heat and high pressure.

Sturdy, thick housing and high-quality sponge for perfect protection of hydraulic measuring instruments

The test set is designed for most excavators and machines available on the market. Hydraulic test pressure gauge is used in construction, agriculture, machinery, forwarding, mining, petroleum, chemical industry, etc.
