Extension slide thickness 14 5mm jcb 535 140 535 95 535 125 331 40824

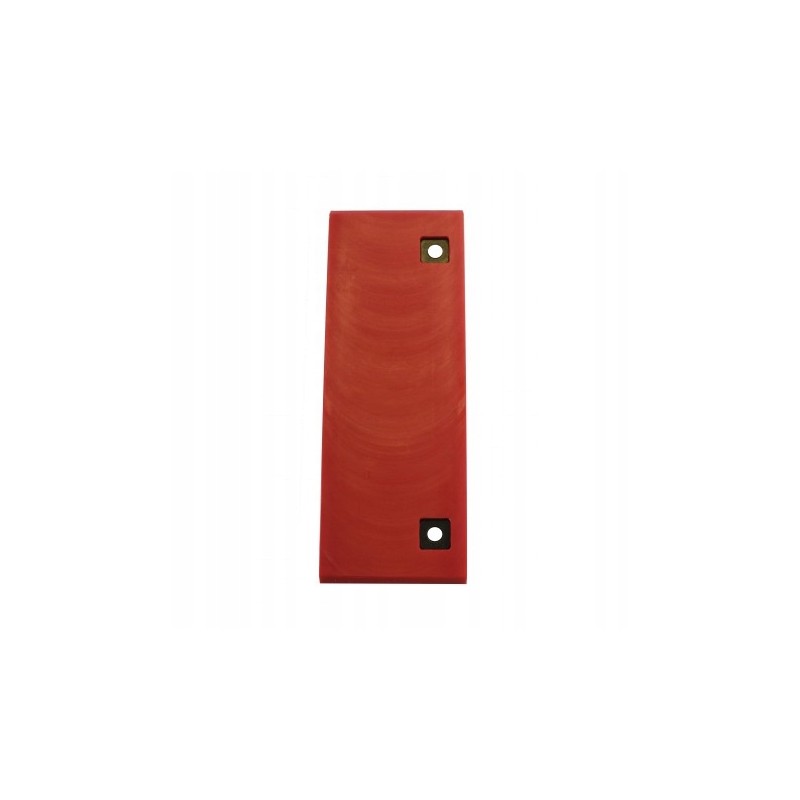

JCB FEED SLIDE Used in machines:

535-140, 535-95, 535-125, 533-105,

Parameters:

Length: 260 mm

Width: 75 mm

Thickness: 14.5 mm

Bolt spacing 194 mm

M10 screw

Properties:

abrasion-resistant,

low coefficient of friction,

good sliding properties,

dimensional stability at large temperature changes,

vibration damping

very high impact strength even at low temperatures

good chemical resistance, e.g. to oils, fats, gasoline, etc.

Slides are made of Polyamide.

It is characterized by good mechanical properties, abrasion resistance and a low coefficient of friction.

The great advantage of polyamides is their shape stability at elevated temperatures.

Moreover, they are resistant to gasoline and solvents.

They demonstrate very high stiffness and high dimensional stability.

The slides are made of one TURNED element The slides are not made by injection method!!!
