JCB loader slides 530 540 26 oem slides

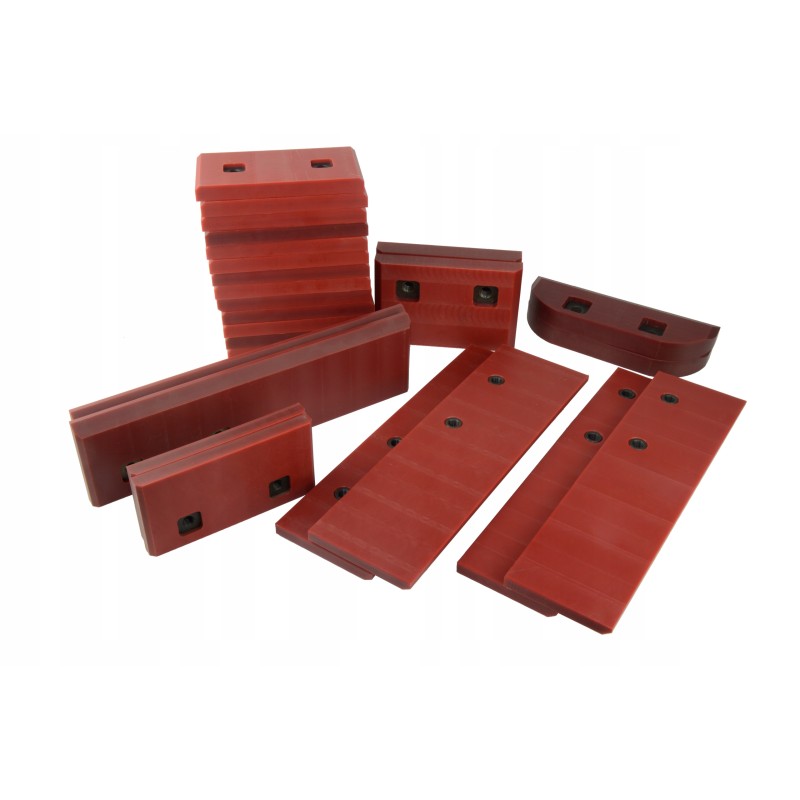

JCB SLIDES TELESCOPIC LOADERS JCB 530 540 SET JCB SLIDE SET JCB SLIDE SET The set consists of: 26 glides

Catalog numbers:

160/00982* - 14 pcs

160/00991* - 2 pcs

160/02207* - 1 pc

16 0/02208 * - 1 pc

160/01789* - 2 pcs

331/17560* - 2 pcs

331/17569* - 2 pcs

331/17570* - 2 pcs

Dimensions:

160/00982* - 150x75x14.5 mm

160/00991* - 150x95x22 mm

160/02207* - 95x320x15 mm

160/02208* - 320x95x14.5 mm

160/01789* - 200x65x20 mm

331/17560* - 300x85x14 mm

331/ 17569* -320x85x14 mm

331/17570* - 150x75x14 mm

The set is available for telescopes of 9 meters and above.

For verification, please ask for the serial number of the machine before purchasing.

Application:

531-70 / 540 FS PLUS / 540 / 535-60 FS / 540S X / 540S / 540 FS PLUS / 530 SUPER AG / 530S / 530S 36 -70/535 FS SUPER/541-70/535 TELEBAT/540S XL/540 SUPER/530 FS PLUS/530/535SX TELEAGRI/530 LE SWAY/540 SWAY/540 LE/535-60/535/535-60 FS+/ 530 SUPER AG / 540 NAVAL / 530 LE SWAY / 530 SUPER / 530 SWAY / 530 FS PLUS / 536-60 / 541-70 / 540 LE SWAY / 540 LE / 535 FS *

Specification:

PA6-G + Oil - Polyamide cast filled with lubricant.

This material has been specially prepared for use as moving parts of machines that are not subject to lubrication. The lubricant used here (mineral oil or solid grease - depending on the color) causes a significant reduction in the friction coefficient compared to the basic PA6-G form. Abrasion resistance is also significantly increased. Typical places of application for this material are plain bearings, bushings, sliding inserts, chain guides, gears and sprockets, sprockets and pulleys.

MATERIAL SAFETY DATA SHEET IN ATTACHED PHOTOGRAPH

*Trademarks used in the content of the website are the property of their legal owners. The names and numbers of the manufacturers are provided for information purposes only in accordance with Art. 156 of the Industrial Property Law.

JCB SLIDE NYLON 530 540 TELESKOP COMPLETEJCB PADSCOMPLETEJCB TELESCOP PADSThe set consists of: 26 slides

Catalog numbers :

160/00982 * - 14 items

160/00991 * - 2 items

160/02207 * - 1 item

160/02208 * - 1 item

160/01789 * - 2 items

331/17560 * - 2 items

331/17569 * - 2 items

331/17570 * - 2 items

Dimensions :

160/00982 * - 150x75x14.5 mm

160/00991 * - 150x95x22 mm

160/02207 * - 95x320x15 mm

160/02208 * - 320x95x14.5 mm

160/01789 * - 200x65x20 mm

331/17560 * - 30 0x85x14 mm

331/17569 * -320x85x14 mm

331/17570 * - 150x75x14 mm

The set is available in telescopes 9 meters and above.

For verification, please check the machine's serial number before purchasing.

Application :

531-70 / 540 FS PLUS / 540 / 535-60 FS / 540S X / 540S / 540 FS PLUS / 530 SUPER AG / 530S / 530S 540 SUPER AG / 535-60 / 536-70 / S535 / 541-70 / 535 TELEBAT / 540S XL / 540 SUPER / 530 FS PLUS / 530 / 535SX TELEAGRI / 530 LE SWAY / 540 SWAY / 540 LE / 535-60 535 / 535-60 FS + / 530 SUPER AG / 540 NAVAL / 530 LE SWAY / 530 SUPER / 530 SWAY / 530 FS PLUS / 536-60 / 541-70 / 540 LE SWAY / 540 LE / 535 FS *

Specification:

PA6-G + Oil - Cast polyamide filled with lubricant.

This material has been specially prepared for use as non-lubricated moving machine parts. The lubricant (mineral oil or solid grease used here - depending on the color) causes a significant reduction in the coefficient of friction in relation to the basic form PA6-G. Abrasion resistance is also significantly increased. A typical application site for this material are plain bearings, acetabulars, slip inserts, chain guides, gears and sprockets, chain and pulleys.

MATERIAL CHARACTERISTICS CARD IN THE ANNEXED PHOTOGRAPHY

*Trademarks used in the content of the site are the property of their respective owners. The names and numbers of the producers are given for information only in accordance with Article 156 of the Industrial Property Law.
