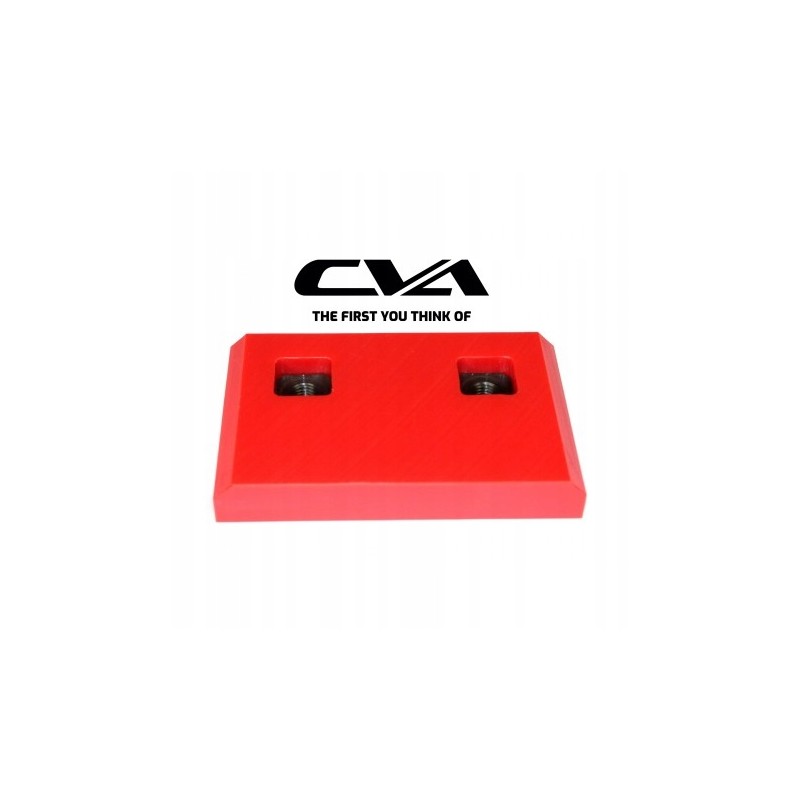

Telescope extension slide 22mm thick jcb 527 58 532 533 105 535 140 160 00991

JCB ARM SLIDING Used in machines:

527-58, 530, 532, 533-105, 535-140, 535-95, 536-60, 537, 550-140, 531-70, 541-70, 540, 540- 140.

Parameters:

Length: 150mm

Width: 95.3mm

Thickness: 22mm

Screw spacing: 80mm

Screw size: M12

Properties:

abrasion-resistant,

low coefficient of friction,

good sliding properties,

dimensional stability with large temperature changes,

vibration damping

very high impact resistance even at low temperatures

good chemical resistance, e.g. to oils, fats, gasoline, etc.

Slides are made of Polyamide.

It is characterized by good mechanical properties, abrasion resistance and a low coefficient of friction.

The great advantage of polyamides is their shape stability at elevated temperatures.

Moreover, they are resistant to gasoline and solvents.

They demonstrate very high stiffness and high dimensional stability.

The slides are made of one TURNED element The slides are not made by injection method!!!
