Ips 302 voac hydraulics f124 s vsk 05026 w9522

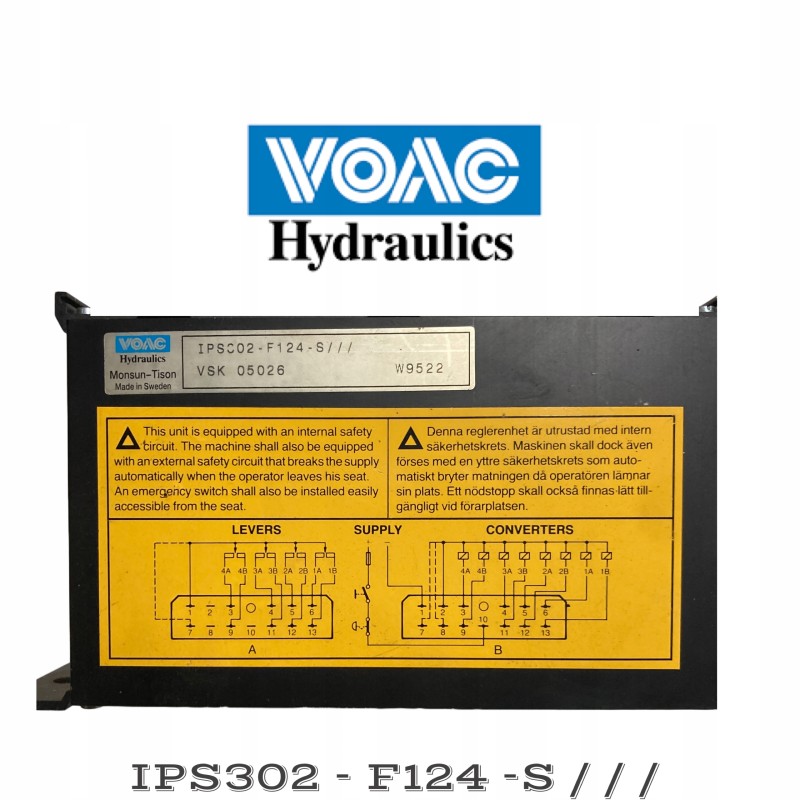

IPS302 is an electronic control unit designed for use with the

ICL3, ICL4 and ICM4 lever unit and PVE102, PVC102

PVC25 remote-controlled valves.

< p/>

A single IPS unit can control up to four double-acting functions. Easily accessible potentiometers

Tuning

Each function is adjusted using three potentiometers:

“Min” adjusts the starting point of the curve.

"Max" adjusts the slope of the curve.

"Ramp" adjusts the ramp time for the front of the unit to fall, making it easy to set the start and end current for the appropriate remote control valves

Technical data

12V 24V version

Ambient temperature range

for function -30 ºC to +50 ºC -30 ºC to +50 ºC

Approved test CE marking CE marking

Supply voltage 9.5 – 16 V DC 20 – 32 V DC

Supply voltage ripple, max. 10% 10%

Surge protection 18 V DC 33 V DC

Current consumption at idle 160 mA 115 mA

Load per channel, max. 1.5 A 1 A

Starting current 50 – 800 mA* 50 – 400 mA*

difference between start and

end current 0 – 1300 mA* 0 – 850 mA**

Frequency 50 – 150 Hz 50 – 150 Hz

External fuse 8 A 6.3 A

Lever assembly supply voltage 5 V 8 V

Ingress protection IP20 IP20

(Recommended for

installation in the cabin)

Weight

with 3 amplifier boards approx. 1.3 kg approx. 1.3 kg

Delivery settings:

Starting current 375 mA 200 mA

Final current 725 mA 400 mA

Frequency 100 Hz 100 Hz

* When connecting an 8.9 ohm load , PVE102-12. 50ºC

** When connecting a 27 ohm load, PVE102-24. 50
