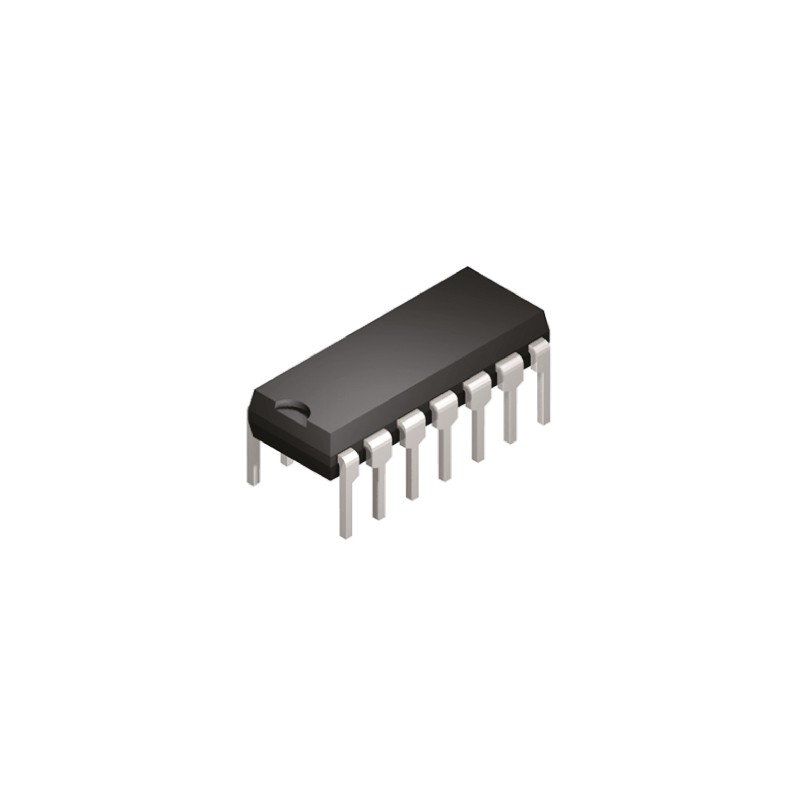

10 pcs - SN74LS05N Texas Instruments SN74LS05N Hex Inverter, 14-Pin PDIP
    • 10 pcs - SN74LS05N Texas Instruments SN74LS05N Hex Inverter, 14-Pin PDIP

    10 pcs - SN74LS05N Texas Instruments SN74LS05N Hex Inverter, 14-Pin PDIP

    10(Allparts)309054
    10 pcs - SN74LS05N Texas Instruments SN74LS05N Hex Inverter, 14-Pin PDIP
    £37.24
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    74LS Family Inverters & Buffers, Texas InstrumentsTexas Instruments range of Inverters and Buffers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.74LS Family
    Product Details
    10(Allparts)309054
    SN74LS05N
    10 Items

    Data sheet

    Manufacturer
    TEXAS INSTRUMENTS
    Dimensions
    19.3 x 6.35 x 4.57mm
    A-Supplier
    Allparts-UK/15/R-15
    Mounting Type
    Through Hole
    Output Type
    Open Collector
    Pin Count
    14
    Package Type
    PDIP
    Maximum Operating Supply Voltage
    5.25 V
    Minimum Operating Supply Voltage
    4.75 V
    Number of Elements per Chip
    6
    Logic Family
    LS
    Logic Function
    Inverter
