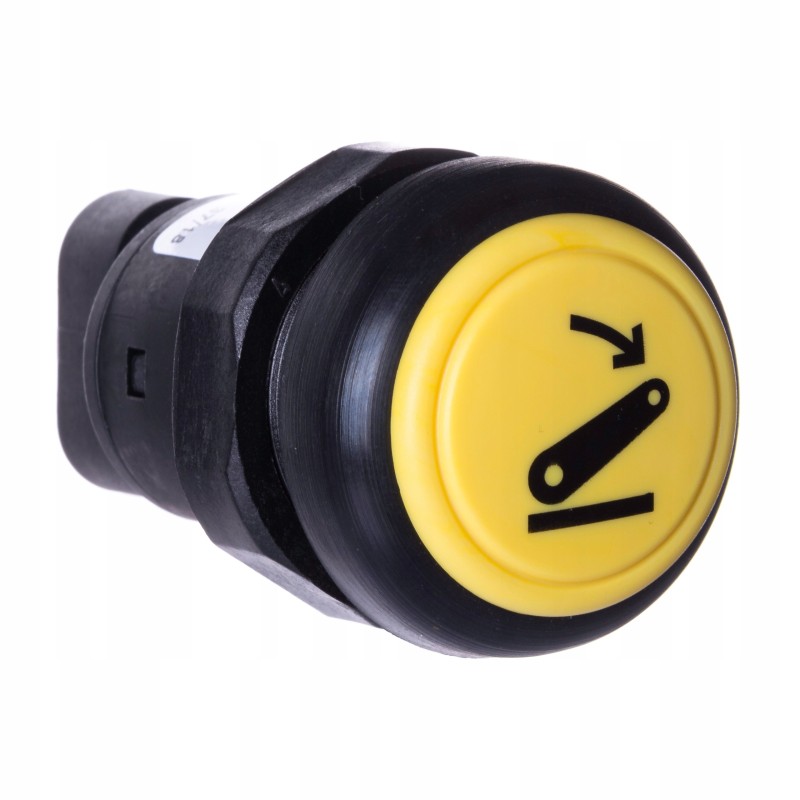

Lift lowering switch mf 3618000 3714138

Lift lowering switch MF 3618000 3714138M1 4270312M2 MIZAR number: 49557

Lift control switch Application:

MASSEY FERGUSON: 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495, 8450, 8460, 8470, 8480

Case IHC CS 48, CS 52, CS 58, CS 63, CS 68, CS 75, CS 78, CS 80, CS 86, CS 90, CS 94, CS 100, CS 110, CS 120, CS 130, CS 150

STEYR: M 948, M 952, M 958, M 963, M 968, M 975, M 9078, M 9083, M 9086, M 9094, 9078, 9086, 9094, 9105, 9115, 9125, 9145

*Catalog numbers: 4284627M1, 3714138M1, 4270312M2

Technical information:

Switch voltage: 48V

Switch power: 10 W/VA

Switch point: 3 + - 1 mm

Switch current: 0.3 A

Contact type: NIGHT

Button travel, total: 5 mm

Activation force: approx. 25 N

Temperature range operation: -20...+100

Button color: Yellow

Function: Lower suspension system

MIZAR number: 49557
