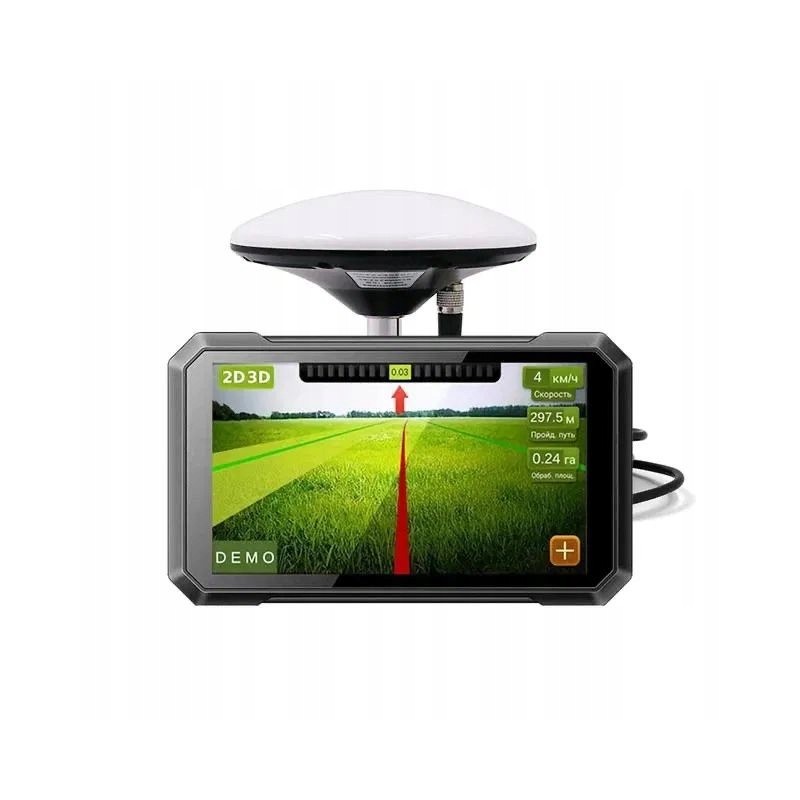

RICOEL TG-7R Agricultural Navigation

We are an authorized distributor of RICOEL manual guidance systems

We sell products in which we have many years of experience and have been tested among our customers. We offer you support and advice on issues related to precision agriculture, and above all, we will choose the best solution for you.

RICOEL GNSS guidance system for manual guidance, ideal for spreading fertilizers and

spraying .

OPERATION IN POLISH

SBAS guidance accuracy +/- 30 cm.

The navigation we offer connects to GPS, GLONASS and SBAS, thanks to which it constantly has access to the appropriate number of satellites for correction corrections, which ensures continuous and trouble-free operation.

Installing and starting the navigation is very simple, without calibration and any additional activities. Just install the display and the GNSS signal receiver on the tractor and connect the power supply to the battery directly.

Installation without interfering with the mechanics or hydraulics of the tractor, without losing the warranty.

We guarantee telephone advice and fast professional service.

Model TG-7R General Screen 7' touch screen Resolution 1024x600px TFT Processor Quad-core 1.3GHz Ram 2GB NAND 16GB Android system GNSS module GPS/QZSS signal frequency: L1C,L5

GLONASS: L1

BeiDou: B1C, B1I, B2a

GALILEO: E1E5

SBAS: WAAS, EGNOS,MSAS, GAGAN, SDCM(L1)

Channels 136 Positioning accuracy approximately 0.6m, P2P 0.2m Position refresh rate 10GHz First start time Cold start: <,=28s Hot start: <,=1s Functions BT 4.0 - version FM transmitter KT0806 75-108MHz Others Interface 5-pin USB connector , MicroSD slot, Reset, 5 pogo pins, toggle button,

SMA

Interface (optional) Serial port, RS232, COM Speaker 2W/8Ohm Waterproof IP65 Input 5V 2A
