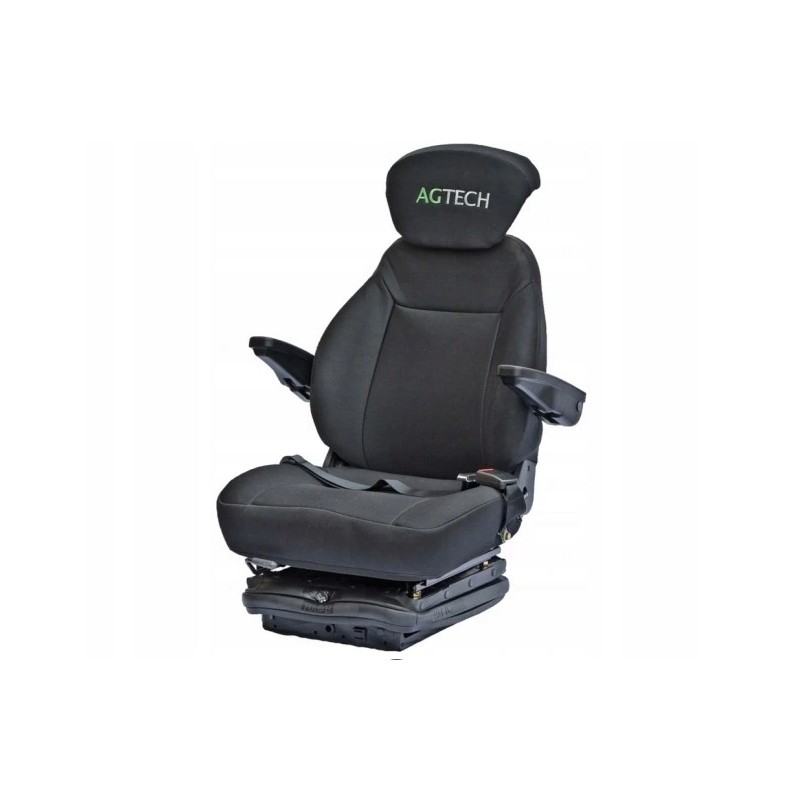

Agtech ursus tractor pneumatic seat

Seat 65689343901 89.343.901 AGTECH Brand: AGTECH / GRANIT PARTS GERMANY

Article number: 65689343901

Reference number: 89.343.901

Technical parameters:

Version: pneumatic suspension with armrests and headrest

reclining

comfortable fabric upholstery with seat belt

Pneumatic suspension seat, especially suitable for medium and large vehicles.

Pneumatic shock absorption equipped with a durable compressor.

The shock absorption is protected by a cover against dirt, water and weather conditions, and has a bumper that guarantees complete shock absorption, both up and down.

Type of upholstery: material

Application: URSUS C-385 902 912 914 1012 1014 1222 1224 1634 1734 1201 1204 1604 and Zetor Case Fendt derivatives

The new form of backrest provides greater space for movement, better side position, adjustable backrest.

Freedom of work is guaranteed by simple height adjustment and individual longitudinal adjustment

Technical data:

- amortization range 100mm

- seat width 520mm

- seat length 460mm

- backrest height (with folded headrest) 550mm

- backrest width 470mm

- longitudinal adjustment 75mm

- base dimensions: 300x380mm

- backrest adjustment angle: 35°-170°

- longitudinal adjustment 150mm Reference no.: 89343901
