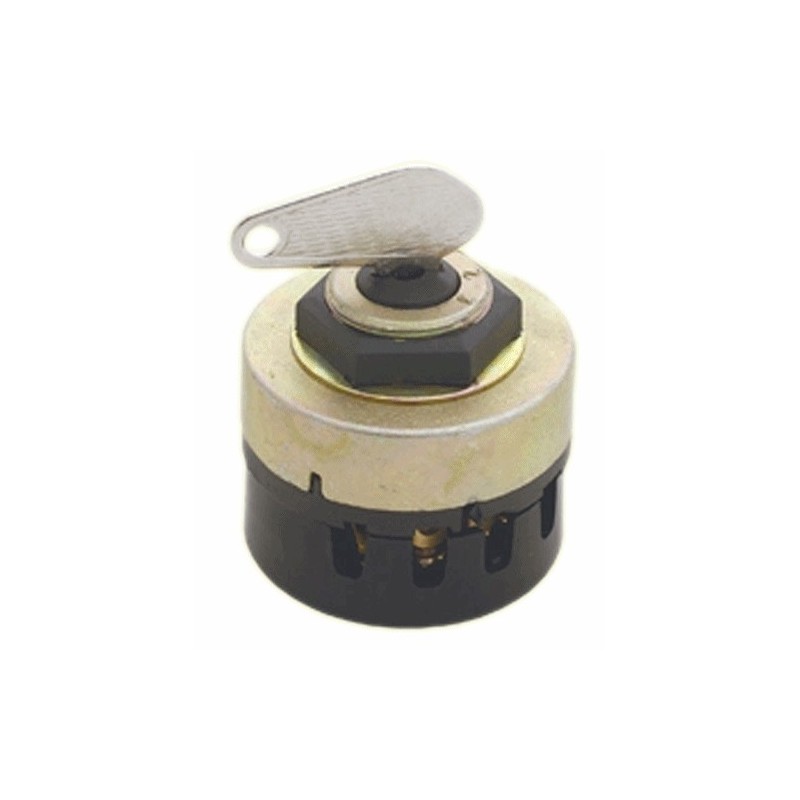

Tractor ignition key Ursus C330 C360

Ignition switch

Application: Ursus C-330 C-360 C-385 902 912 914 1012 1014 1222 1224 and derivatives Mounting diameter: 26mm

Number of pins: 8

Complete with two keys PARAMETERS: length/max diameter [mm] - 49/51,

mounting thread diameter [mm] - M26x1,

thread length [mm] - 8.2 ,

plastic nut, wrench 32,

has 8 clamping connections with screws with a diameter of M4,

thread length [mm] - 6.6,

screwed on with a flat-head (-) or Phillips (+) screwdriver,

diameter of the hole for cables [mm] - 4,

spacing of holes for cables [mm] - 9.3,

switching 0,1,2,3.
