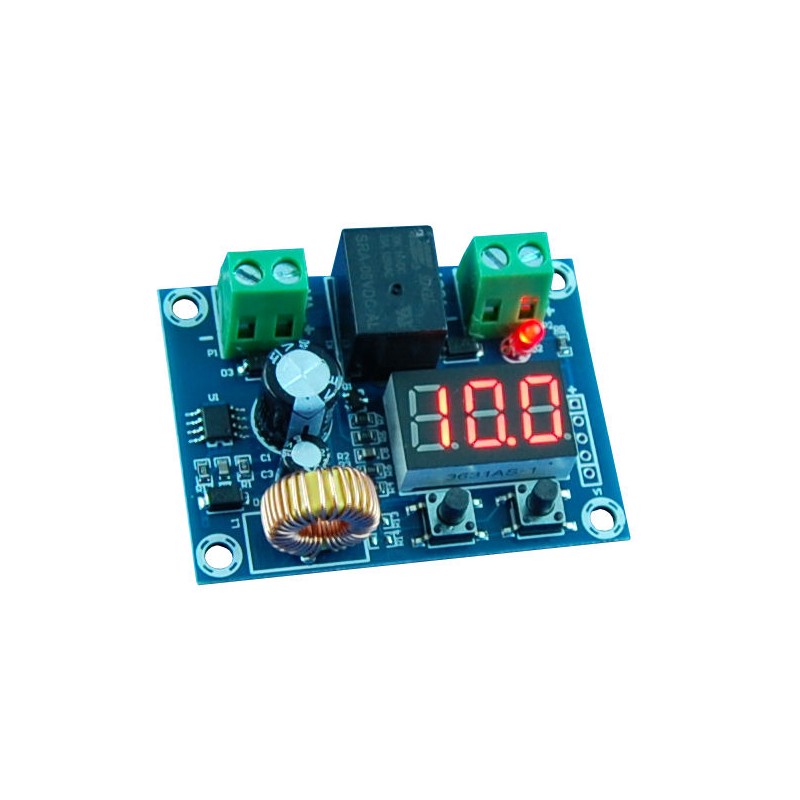

Protection of the 6v battery against discharge

BATTERY PROTECTION 6V 12V 24V AGAINST DISCHARGING XH-M609

Product number: 39733

PROTECTING A GEL OR AGM BATTERY AGAINST DISCHARGING XH-M609

The module is a device that protects against excessive battery discharge. Works with gel or AGM batteries with a rated voltage of 6V, 12V, 24V.

The module operates by disconnecting the battery from the load in a situation that threatens to completely discharge it. The maximum load of the module is 10 A - remember this and it is best to check the current consumption in the system before installing the protection.

Module power supply (input): 6V - 36V DC

Battery Voltage: 6V - 36V

Voltage detection accuracy: +/- 0.5V (usually the displayed voltage is 0.1V-0.5V lower - this does not affect the functionality, but remember this when setting the voltages to turn the relay on and off)

Indicator light indicating module activation. Voltage at the VOUT

output Max load: 10 A 12V DC

Module dimensions: 57mm x 42mm x 18mm Possibility to program the voltage of switching the relay on/off, i.e. programming the voltage at which the battery is to be disconnected from the system.

Possibility to set the inertia of the system, i.e. hysteresis.

The settings are remembered after a power failure - there is no need to re-program.

NOTE: Typically, the displayed voltage is 0.1V-0.5V lower - this does not affect the functionality, but please remember this when setting the voltages to turn the relay on and off.
