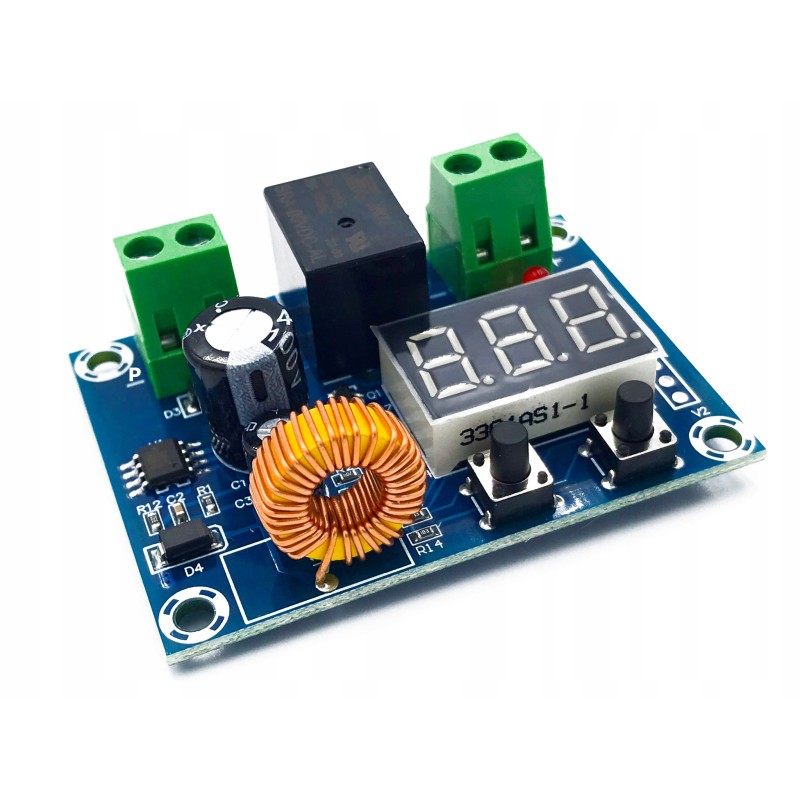

Battery discharge protection

Battery discharge protection 12/24VInput voltage: 8-36V

Maximum load on relay contacts: 20A 14VDC / 20A 125VAC

Voltage measurement accuracy: +/-0.3V

Dimensions: 57*42*19mm

When connected to the battery the display shows the current battery voltage.

Depending on the software version, there are two setting methods:

1 Press the left button twice quickly - set the battery cut-off voltage

Press the right button twice quickly - set the hysteresis (default 2V)

While holding the right button button - setting the delay time of switching on the relay (default 0 minutes, every 1 minute)

Holding the left button - calibration of the voltage display

Holding both buttons - resetting settings

2When you briefly press the left button (+), the set voltage at which it will be battery disconnected.

When you briefly press the right button (-), the set hysteresis from the range of 0.1 to 10V will be displayed.

When you hold the left button (+) for a longer time, the set battery disconnection voltage will be displayed and flashing, use the +/- keys to change its value.

After holding the right button ( - ) for a long time, the set hysteresis voltage will be displayed and flashing, we can change its value with the +/- keys.

Example: Set cut-off voltage set to 10V, hysteresis to 3V. The battery will be disconnected when the voltage drops below 10V and reconnected when the voltage is 3V higher, i.e. at 13V
