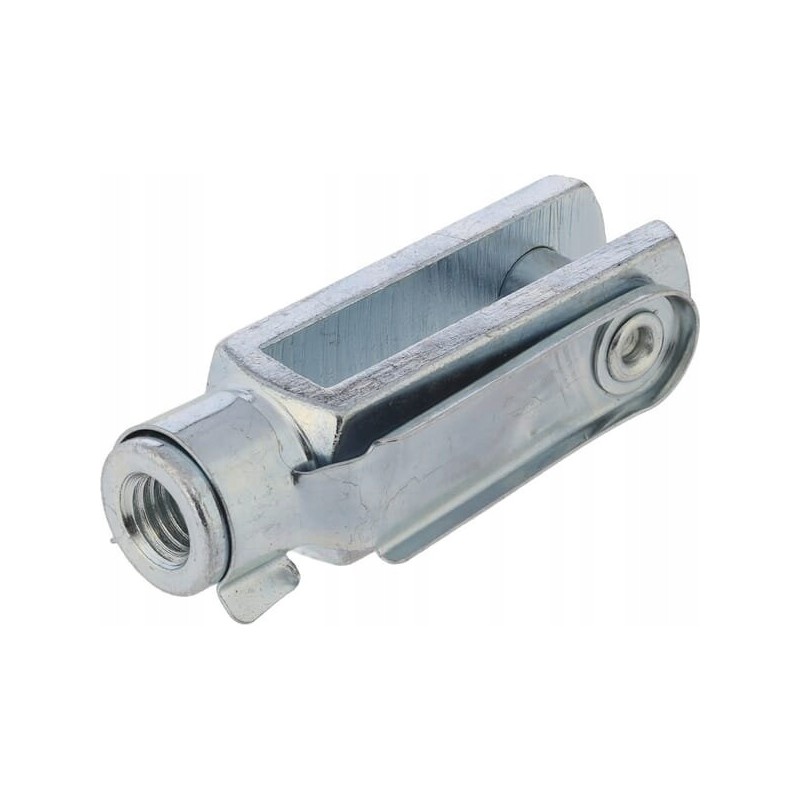

Fork and pin, M8 x 48 Parameters
Part number: CA98130
Unit: piece
Manufacturer: Kramp
EAN: 8719593707020< p>
Clearance inside, top to center hole [B]: 32 mm
Clearance, top to center hole [E]: 48 mm
Inside width [D] : 8 mm
Note: For clevis heads from G12..., the pin with clip is not included in the scope of delivery.
Stud Ø [F]: 8 mm
Standard: DIN 71752 / DIN ISO 8140
Thread: M 8
M thread: M 8 x 1.25 mm
Type: galvanized
Width [C]: 16 mm
