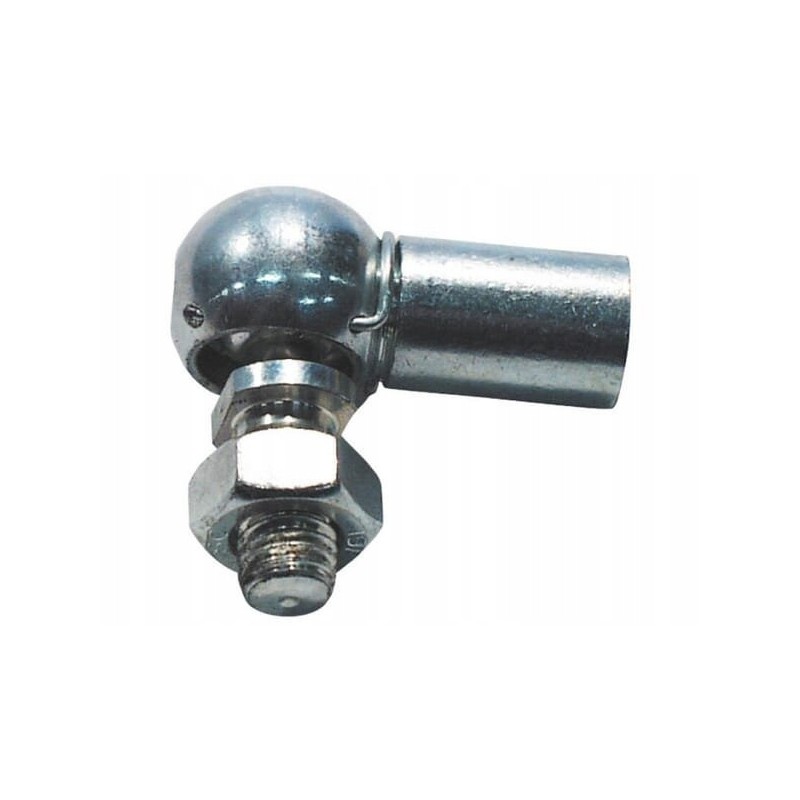

Gas spring tip Parameters
Part number: CA98520
Unit: piece
Manufacturer: Kramp
EAN: 8719593707167
Properties: - Right-hand (R) and left-hand (L) thread
Consists of: - With locking ring
Working length: 30 mm
Diameter thread - short side [A]: M8
Thread length - short side [C]: 16 mm
Thread type - short side: Metric
Thread direction - short side: Right
Thread diameter - rod side [G]: M8
Thread type - rod side: Metric
Thread direction - rod side: Right
Wrench size [F]: 11 mm
Joint ball diameter [E]: 13 mm
Material: Zinc
Dimension from top of the tip to the ball axis of the joint [B]
13 mm
Dimension from the end of the rod tip to the axis of the ball of the joint [D]
30 mm
