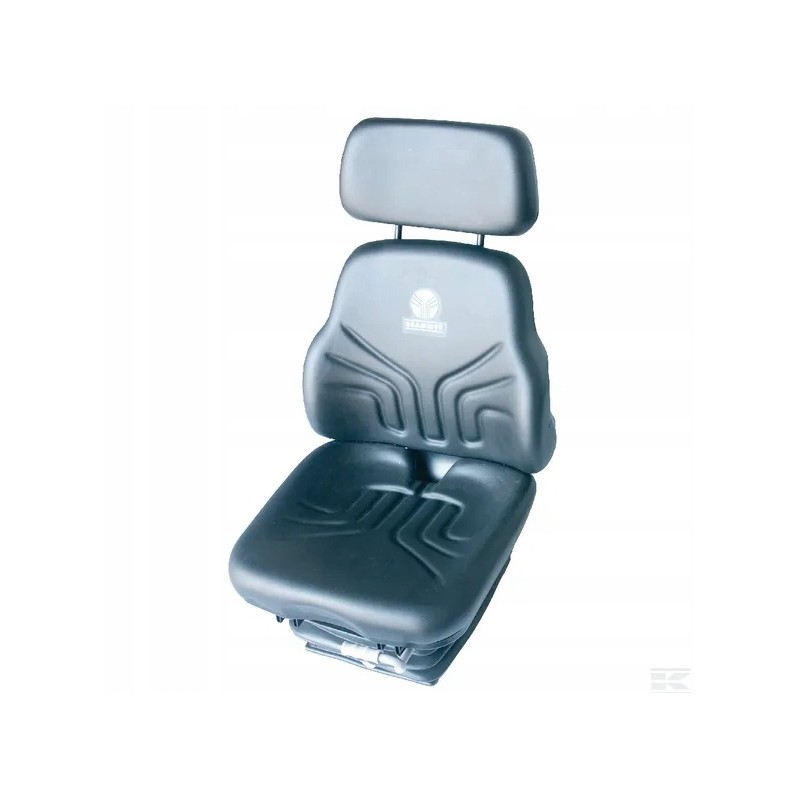

Seat compacto comfort m grammer

Part number: G1081366

Unit: Piece

Specifications:

Air suspension seat

Weight-based adjustment, air-assisted< p>

Application: For small tractors, construction machines and mini excavators with a narrow wheel track

Properties:

Seat width 450 mm

Spring deflection 80 mm

Height adjustment 60 mm, stepless

Longitudinal adjustment 210 mm

Adjustment depending on body weight 50 - 130 kg

Weight 27 kg

Mechanical support of the lumbar spine

Backrest inclination adjustment

Benefits:

Provides optimal sitting comfort in the smallest possible space

The correct seat position is achieved using the hand grip

Suspension type: Pneumatic

Upholstery material: PVC

Upholstery color: Black

Total width: 470 mm

Consists of:

Seat

With compressor

Without backrest extension

No armrests

Armrests included: No

Headrest included: No

Seat belts included: No

Seat contact switch: No

Auto-adjustment to user's weight: No

Model: MSG93/521

Height adjustment: 6 cm

Depth : 572 mm

Minimum working load: 50 kg

Suspension stroke: 8 cm

Maximum working load: 130 kg

Fits machine/vehicle models: MSG 93 / 521

Total height: 700 mm

Heated: No

Total length: 572 mm

Supply voltage: 12 V
