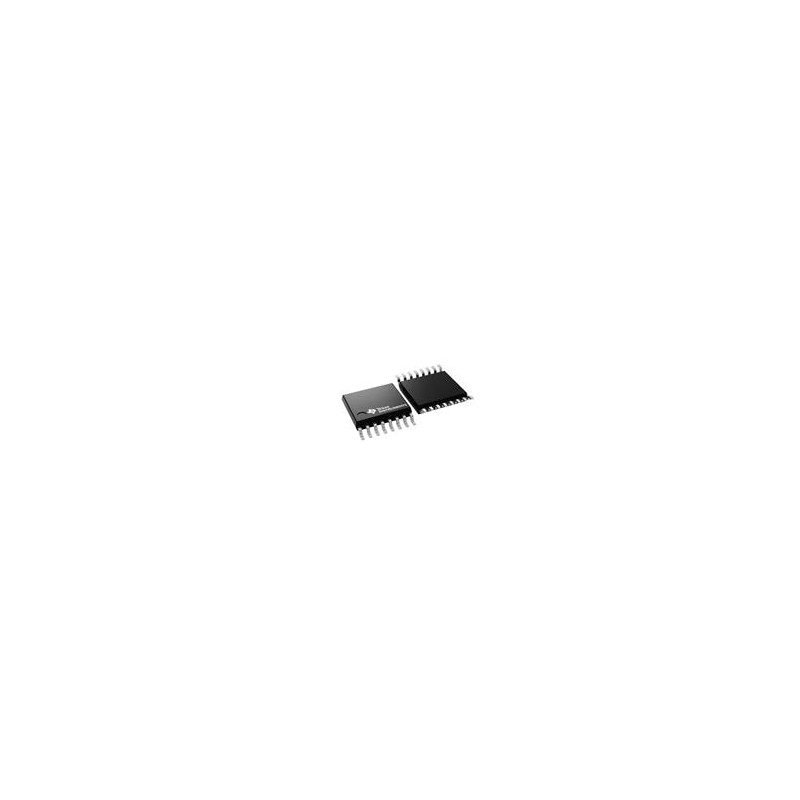

1 pcs : LDC5072EPWRQ1 - Industrial Motion & Position Sensors Automotive inductive position sensor front end with sine/cosine int

LDC5072-Q1 Inductive Position Sensor Front End Texas Instruments LDC5072-Q1 Inductive Position Sensor Front End is an analog front-end for contactless, inductive position sensors targeted for an absolute rotary position in automotive and industrial applications. The Texas Instruments LDC5072-Q1 excites a coil typically printed on a printed circuit board (PCB). The excitation is coupled back into two sets of receiver coils on the same PCB using a conductive target placed close to the PCB. The conductive target can also be a pattern printed on another PCB. The coil PCB stays stationary, and the target moves with the motor, actuator, or valve. The excitation coil generates a secondary voltage on the receiver coils depending on the position of the target relative to the receiver coils. A signal representation of the position is obtained by reading the voltages from the receiver coils, processing it, and giving analog outputs representing the Sine and Cosine components of the position of the target.
