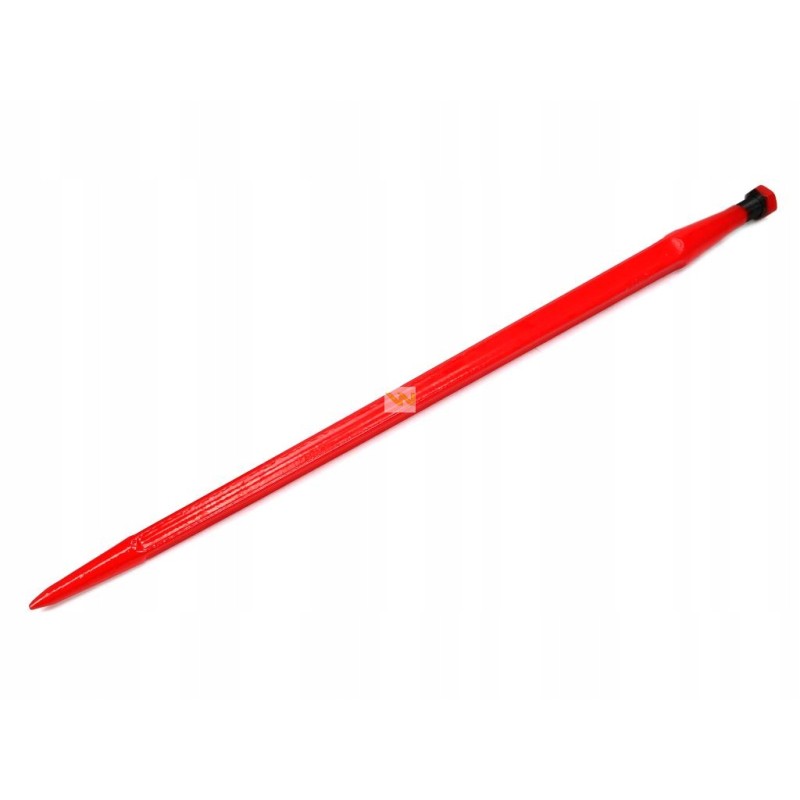

Universal red loader, straight, l 810mm

Universal red straight loader tooth L-810 mm application 5193-FT1N Tur WARYŃSKIW W9132-810PTUR type front loader tooth, telescopic loader. The tooth was designed taking into account stress simulation using the finite element method. It was made of spring steel by forging. The steel we use is also used in the production of springs and spiral, disc and ring springs for motor vehicles under the highest loads. Works perfectly with the Waryński Bushing. Remember to replace the bushing if it is worn when replacing a tooth.

Specification: Thread: M22 x 1.5

Length: 810 [mm]

Diameter at the root: 36 [mm]

Shape: Straight

Mounting angle : 10[°]
