519360020 loader bent 35 5x585mm m20x1 5

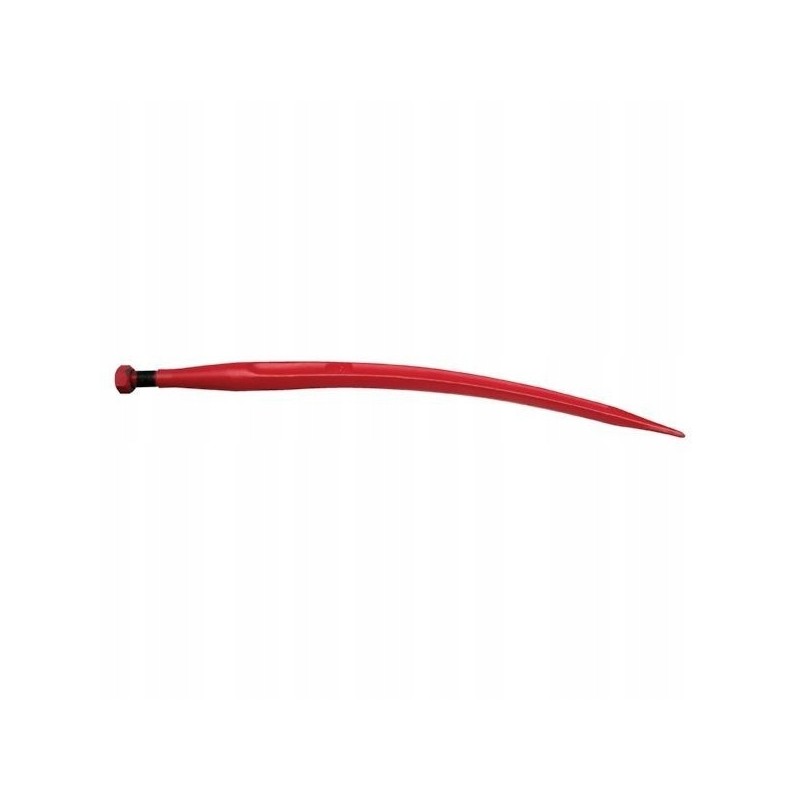

Loader tine bent, L-600 mm INDEX: 519360020

Color: Red

Length: 585 mm

Shape: Curved closing

Thread type: Metric

Thread pitch: 1.5 mm

Thread diameter: 20 mm

Blade profile: Pointed

Profile: Square

Fastening type: Nut

Maximum seat diameter: 35, 5mm

Max diameter: 35.5mm

Min seat diameter: 20.7mm

Cone length: 85mm

Additional information: The gopart loader's teeth are subjected to heat treatment technological processes, ensuring optimal hardness and structure of the material. They are made of high-quality spring steel, which ensures their high load resistance. They are produced by forging and subjected to various types of durability tests. Additionally, constant control in the production process ensures that the teeth retain their repeatability and have constant properties.
