    10 pcs : MP6543GL-P - Motor/Motion/Ignition Controllers & Drivers 12V, 2A, Three-Phase Power Stage(ENABLE and PWM inputs for eac
    • 10 pcs : MP6543GL-P - Motor/Motion/Ignition Controllers & Drivers 12V, 2A, Three-Phase Power Stage(ENABLE and PWM inputs for eac

    10 pcs : MP6543GL-P - Motor/Motion/Ignition Controllers & Drivers 12V, 2A, Three-Phase Power Stage(ENABLE and PWM inputs for eac

    10(Allparts)946MP6543GLP

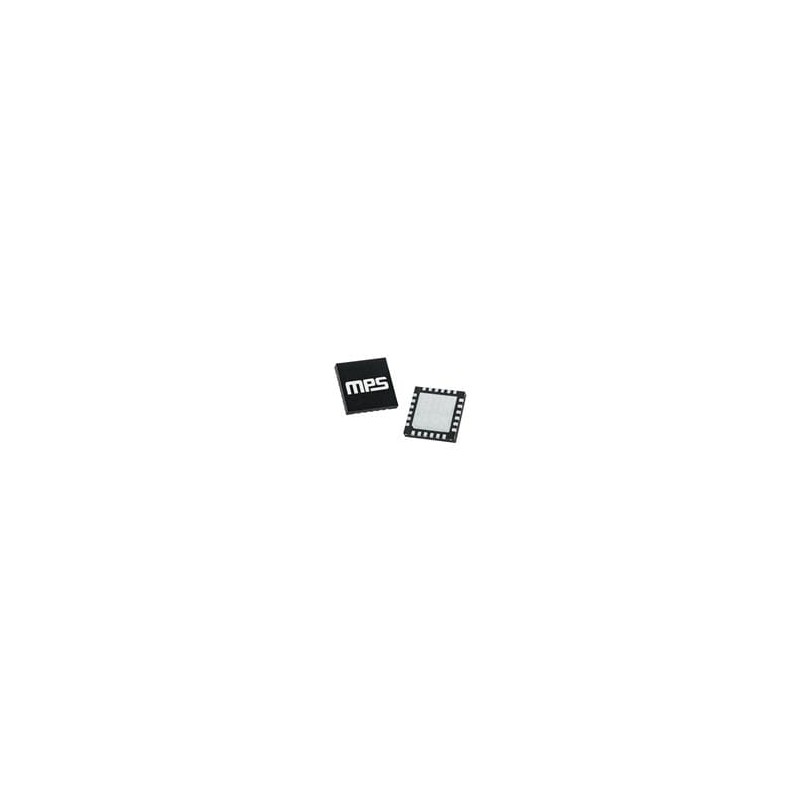

    10 pcs : MP6543GL-P - Motor/Motion/Ignition Controllers & Drivers 12V, 2A, Three-Phase Power Stage(ENABLE and PWM inputs for each 1/2-H-bridge)
    £60.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MP6543 2A 3-Phase Brushless DC Motor Drives Monolithic Power Systems (MPS) MP6543 Brushless DC Motor Drivers are 12V, 2A 3-phase power stages. The MP6543H Motor Drivers each integrate three half-bridges consisting of six N-channel power MOSFETs, as well as pre-drivers, gate drive power supplies, and current-sense amplifiers. These devices are available in three variants. The MP6543 has Enable (EN) and PWM inputs for each half-bridge. The MP6543A has separate High-Side (HS) and Low-Side (LS) inputs. The MP6543B has Hall-effect sensor inputs.
    Product Details
    Monolithic Power Systems (MPS)
    10(Allparts)946MP6543GLP
    MP6543GL-P
    10 Items

    Data sheet

    Manufacturer
    Monolithic Power Systems (MPS)
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Half Bridge
    Output Current
    2 A
    Product Type
    Motor / Motion / Ignition Controllers & Drivers
    Product Category
    Motor/Motion/Ignition Controllers & Drivers
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Monolithic Power Systems (MPS)
    Product
    Brushless DC Motor Controllers
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    PMIC - Power Management ICs
    Operating Supply Current
    2.5 mA
