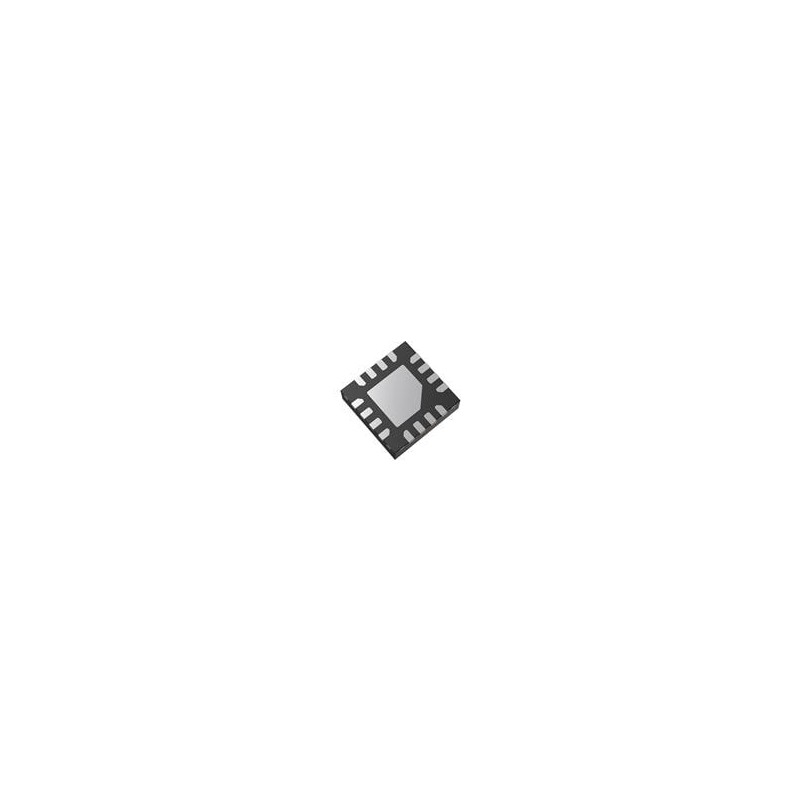

1 pcs : TC78H670FTG,EL - Motor/Motion/Ignition Controllers & Drivers Stepping Mtr Drvr IC
    • 1 pcs : TC78H670FTG,EL - Motor/Motion/Ignition Controllers & Drivers Stepping Mtr Drvr IC

    1 pcs : TC78H670FTG,EL - Motor/Motion/Ignition Controllers & Drivers Stepping Mtr Drvr IC

    Allparts-UK/M/757-TC78H670FTGEL
    TOSHIBA
    £11.92
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TC78H6 Brushed Motor Driver ICs Toshiba TC78H6 Brushed Motor Driver ICs are low-profile, dual-bridge driver ICs for DC motors incorporating DMOS in output transistors. The TC78H6 brushed motor driver ICs are silicon monolithic fabricated and can drive two DC brush motors or one stepping motor. These driver ICs feature built-in over-current detection, thermal shutdown circuit, and under-voltage lockout. The TC786 brushed motor driver ICs operate at 2.7V to 5.5V supply voltage range and -30°C to +85°C operating temperature range.
    Product Details
    TOSHIBA
    Allparts-UK/M/757-TC78H670FTGEL
    TC78H670FTG,EL
    10 Items

    Data sheet

    Manufacturer
    TOSHIBA
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    2 Phase
    Output Current
    1.1 A
    Product Type
    Motor / Motion / Ignition Controllers & Drivers
    Package/Case
    VQFN-16
    Product Category
    Motor/Motion/Ignition Controllers & Drivers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Toshiba
    Factory Pack Quantity Factory Pack Quantity
    4000
    Subcategory
    PMIC - Power Management ICs
    Unit Weight
    23 mg
    Pd - Power Dissipation
    1.79 W
    Operating Supply Current
    3.3 mA
