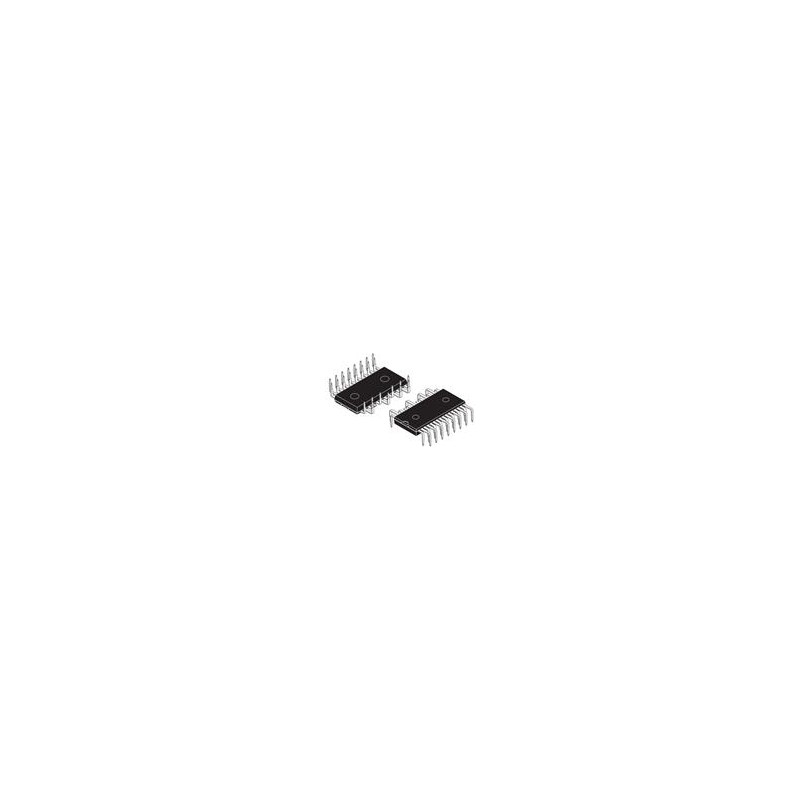

1 pcs : STGIPN3H60 - IGBT Modules SLIMM Nano 3A 600V 3-Phase IGBT Bridge
    • 1 pcs : STGIPN3H60 - IGBT Modules SLIMM Nano 3A 600V 3-Phase IGBT Bridge

    1 pcs : STGIPN3H60 - IGBT Modules SLIMM Nano 3A 600V 3-Phase IGBT Bridge

    electronicparts-UK/M/511-STGIPN3H60
    £24.54
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SLLIMM™ Intelligent Power Modules (IPMs) STMicroelectronics SLLIMM™ Intelligent Power Modules (IPMs) extend ST's appliance-control product range with a thermally efficient solution that simplifies design by combining application specific IGBTs and diodes, proprietary control functions, smart protections and extra optional features. Directly connected to the microcontroller, IPMs convert microcontroller output into the correct high-power waveform to drive the motor. One module can replace more than 30 discrete components, thereby increasing reliability while reducing size and cost.
    Product Details
    electronicparts-UK/M/511-STGIPN3H60
    STGIPN3H60
    10 Items

    Data sheet

    Manufacturer
    STMicroelectronics
    Series
    STGIPN3H60
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Through Hole
    Product Type
    IGBT Modules
    Configuration
    3-Phase Inverter
    Package/Case
    NDIP-26L
    Product Category
    IGBT Modules
    Packaging
    Tube
    RoHS
    Details
    Brand
    STMicroelectronics
    Product
    IGBT Silicon Modules
    Factory Pack Quantity Factory Pack Quantity
    476
    Subcategory
    IGBTs
    Tradename
    SLLIMM
    Unit Weight
    6.864 g
    Pd - Power Dissipation
    9.7 W
