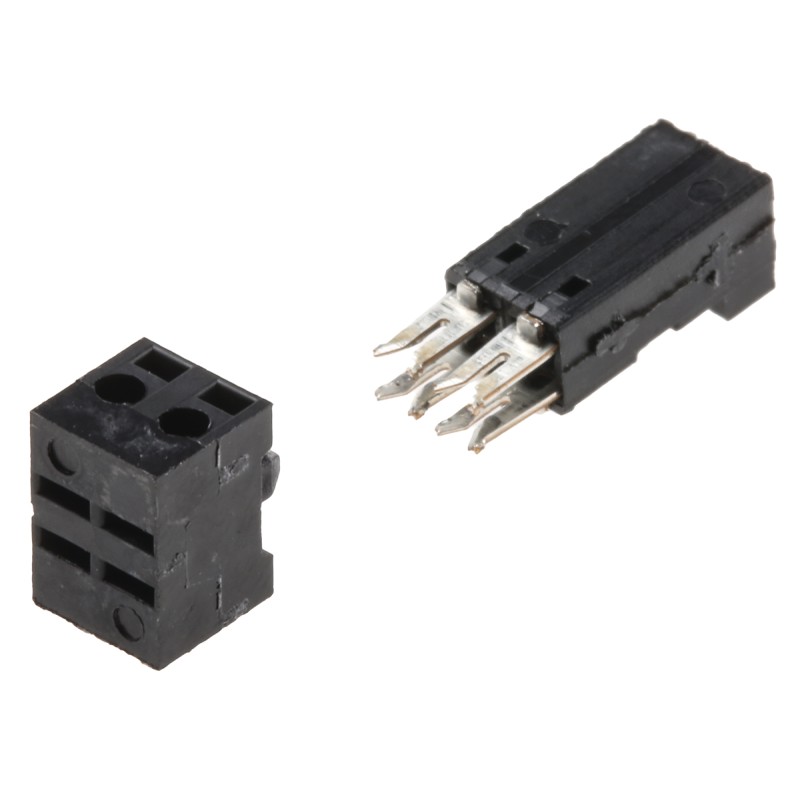

50 pcs - 661002151923 Stelvio Kontek 2-Way IDC Connector Socket for Cable Mount, 1-Row
    • 50 pcs - 661002151923 Stelvio Kontek 2-Way IDC Connector Socket for Cable Mount, 1-Row
    • 50 pcs - 661002151923 Stelvio Kontek 2-Way IDC Connector Socket for Cable Mount, 1-Row

    50 pcs - 661002151923 Stelvio Kontek 2-Way IDC Connector Socket for Cable Mount, 1-Row

    50(Allparts)5066998
    50 pcs - 661002151923 Stelvio Kontek 2-Way IDC Connector Socket for Cable Mount, 1-Row
    £64.99
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Autocom HE13 90° ConnectorsFrom Stelvio Kontek, this range of AUTOCOM Single Row IDC Connectors with 90° exit are designed to receive flat or single wire cables in size ranges are 22-24 AWG. Suitable for a variety of low voltage applications, these AUTOCOM IDC Connectors are side stackable and have Double blade contacts. They are encased in black GF Thermoplastic and have an insulation resistance of 105 MΩ min, and a contact resistance of ≤20 mΩ.StandardsHE13, HE14, IEC 603-82.54mm Kontek Comatel HE13 IEC603-8 RangeGold plated board to board/board to wire interconnection system
    Product Details
    50(Allparts)5066998
    661002151923
    10 Items

    Data sheet

    Manufacturer
    Stelvio Kontek
    Current rating
    3A
    Contact material
    phosphor bronze
    Contact plating
    Gold over Nickel
    A-Supplier
    Allparts-UK/15/R-10
    Series
    Autocom
    Voltage Rating
    500.0 V ac
    Maximum Operating Temperature
    125.0°C
    Mounting Type
    Cable Mount
    Minimum Operating Temperature
    -55.0°C
    Housing Material
    PET
    Number of Contacts
    2
    Gender
    Female
    Termination Method
    IDC
    Body Orientation
    Right Angle
