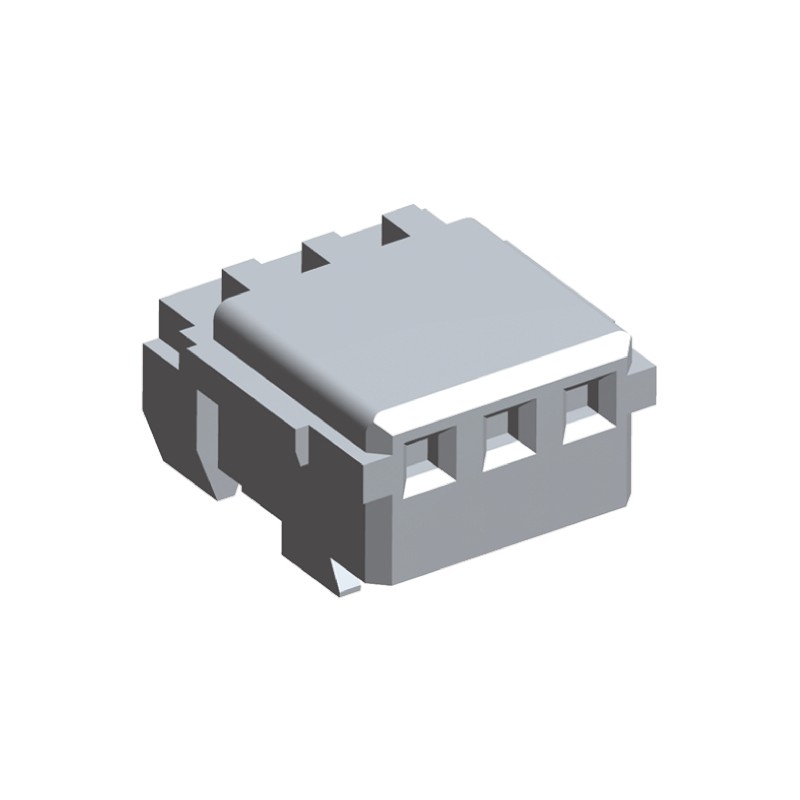

100 pcs - 353293-3 TE Connectivity 3-Way IDC Connector Socket for Cable Mount, 1-Row
    • 100 pcs - 353293-3 TE Connectivity 3-Way IDC Connector Socket for Cable Mount, 1-Row

    100 pcs - 353293-3 TE Connectivity 3-Way IDC Connector Socket for Cable Mount, 1-Row

    100(Allparts)6831695
    100 pcs - 353293-3 TE Connectivity 3-Way IDC Connector Socket for Cable Mount, 1-Row
    £50.88
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TE Connectivity 1.5mm MT Pre-Loaded Receptacle Housings - Mini CT SeriesMini CT series receptacle style single row MT (mass termination) IDC wire connector housings with a 1.50mm centreline. These receptacle style IDC MT wire connector housings are made from UL 94V-0 nylon, have phosphor bronze pre-tin plated dual beam socket contacts and accept a wire size of 22 to 28 AWG. For suitable mating products see stock numbers 706-8139 and 718-9563 typically.TE Connectivity AMP mini CT Interconnection SystemAMP Mini CT miniature interconnection system with a compact design and a 1.5 mm pitch. The AMP Mini CT connector system is for use in wire to board and wire to wire applications and has proven wire harness capability. The connector system consists of PCB and panel mounting headers and crimp or MT (Mass Terminated) cable mounting housings. The MT housings are loaded with IDC contacts.
    Product Details
    100(Allparts)6831695
    353293-3
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Current rating
    2A
    Contact material
    phosphor bronze
    Contact plating
    Tin over Nickel
    A-Supplier
    Allparts-UK/15/R-10
    Series
    AMP Mini CT
    Voltage Rating
    50.0 V dc, 50.0 V ac
    Maximum Operating Temperature
    105.0°C
    Mounting Type
    Cable Mount
    Minimum Operating Temperature
    -30.0°C
    Housing Material
    Nylon
    Number of Contacts
    3
    Gender
    Female
    Termination Method
    IDC
    Body Orientation
    Straight
