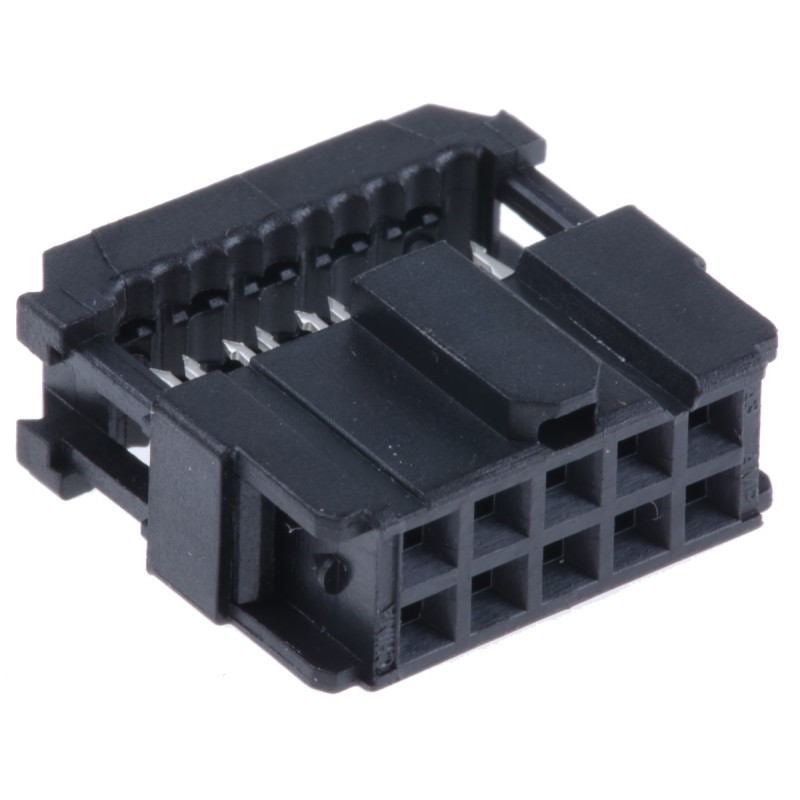

10 pcs - 1658622-1 TE Connectivity 10-Way IDC Connector Socket for Cable Mount, 2-Row

TE Connectivity Novo Series IDC Ribbon Cable ConnectorsTE’s Novo series IDC ribbon cable connectors are designed to work hand in hand with compatible flat ribbon cables to create a cable assembly. With military and centre polarization, the Novo series is to be used with wire to board IDC ribbon cable connectors with centre and military polarized centres and a 2.54 x 2.54 mating grid for 1.27mm pitch ribbon cable. These AMP-LATCH Novo IDC ribbon cable connectors are made from UL 94V-0 thermoplastic with two rows of IDC duplex plated tuning fork style contacts accepting a wire size of 28-26 AWG. A cover is supplied with these AMP-LATCH Novo housing assemblies and optional strain reliefs are available.IDC is short for Insulation-Displacement Connector. These electrical connectors are designed for ribbon cables and telecommunications applications. They are also referred to as insulation-piercing contacts (IPCs).Features• Connector System- Wire to Board• Tuning fork contact offers a military approved design, at an economical cost• Choice of duplex gold plating on contact mating area• Selected 10 thru 64-position configurations available• Contact design provides uniform latching of contacts and housing with connector coverStandardsDIN 41651, DIN EN 60352-3//4
