Hydraulic valve lock for cylinder 3 8 35l

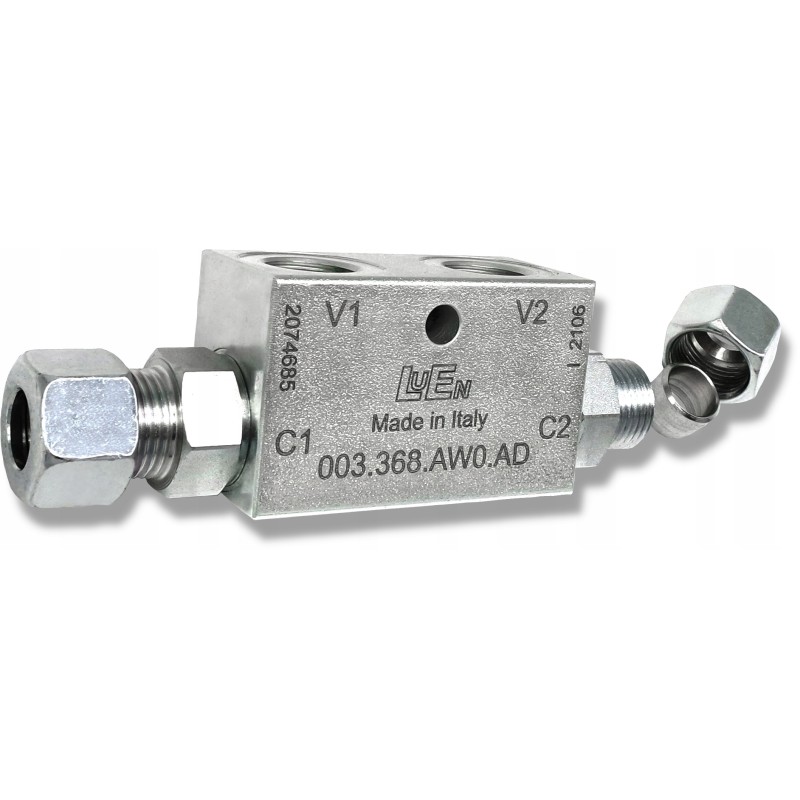

Hydraulic check valve 'ZAMEK VBPDE 3/8' - locking the double-acting cylinder. SKRAW-MET CODE: [0326] Italian product - solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.

The valve releases the lock when controlled. hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Technical specifications: Maximum flow: 35L/min

Internal threads in the body: 3/8'

connection port Permissible pressure max. 350 bar

Permissible ambient temperature: -30°C to +50°C

Permissible oil temperature: -30°C to +80°C

Oil type: mineral oil based hydraulic oil Material: galvanized steel Connection: Connect V1 and V2 to the power line (distributor) and C1 and C2 to the actuator.

Capacity chart: Sample circuit diagram:
