Hydraulic unit 2 5kw 5l power pack plug snow removal

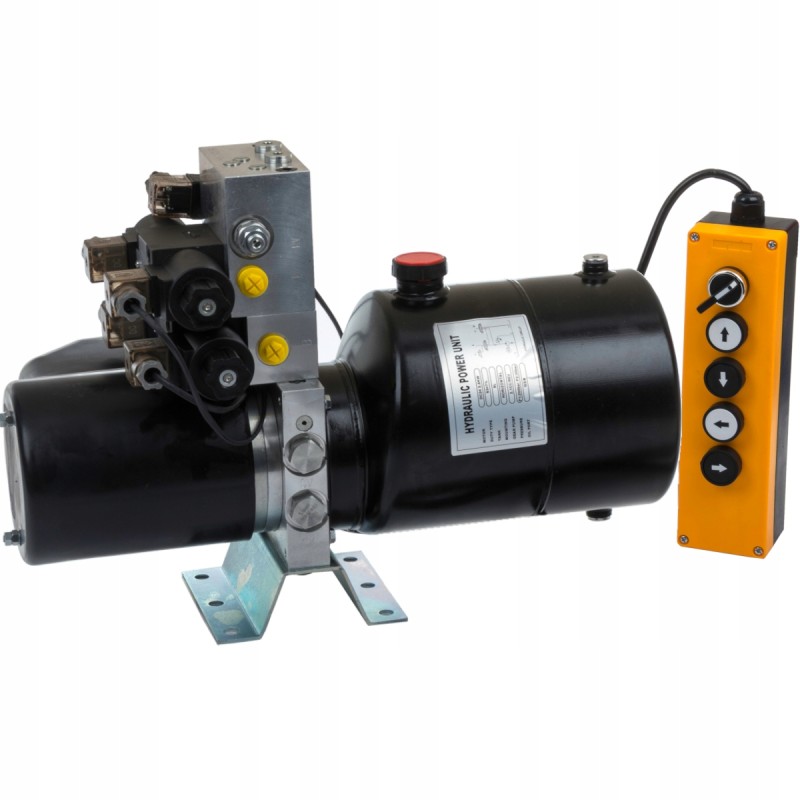

Hydraulic unit 2.5kW 5l Power Pack snow plow MIZAR number: 66852

Hydraulic unit 2.5kW 5l Power Pack snow plow Compact hydraulic unit for snow plows.

The perfect solution for powering snow plow hydraulics.

Electrically powered by 24V, it does not require any pump drive attachments from the car's drive system or a combination with a pneumatic connection.

The compact and compact design facilitates installation directly on the plow frame, which limits the length of hydraulic hoses needed.

The unit has two double-acting sections, including one with a floating function, thanks to which it is possible to control both the working height of the plow and its angle to the vehicle axis.

The floating function is perfect for roads with uneven surfaces. By not blocking the actuator with pressure, the section allows it to "float" on the road surface, then the plow is pressed only by gravity with its own weight. This makes the plow's operation smoother, more effective and less prone to failure.

The distributor also has a loading option, secured by an overflow valve set to 30 bar, which eliminates the risk of too much loading, which could damage the plow.

The device is controlled by a solid remote control with clear markings, the length of the remote control cable is up to 380 cm, so it can be easily mounted in the cabin.

The remote control has a magnet on the back wall so you can attach it without tools and at the same time remove it from the holder at any time if necessary.

In addition to four momentary buttons to control the actuators, the remote control has a switch activating the swimming function.

The metal tank is resistant to impacts from stones and ice blocks that can be torn up by a plow.

The 5L capacity allows the operation of two actuators with a cylinder thickness of up to 80mm and a stroke of 500mm.

MIZAR number: 66852
