Hydraulic tee connector type bbb 14 14 14
  • Hydraulic tee connector type bbb 14 14 14
  • Hydraulic tee connector type bbb 14 14 14
  • Hydraulic tee connector type bbb 14 14 14

Hydraulic tee connector type bbb 14 14 14

15013531899950
SM-G
£12.66
Quantity
5 Items

Description

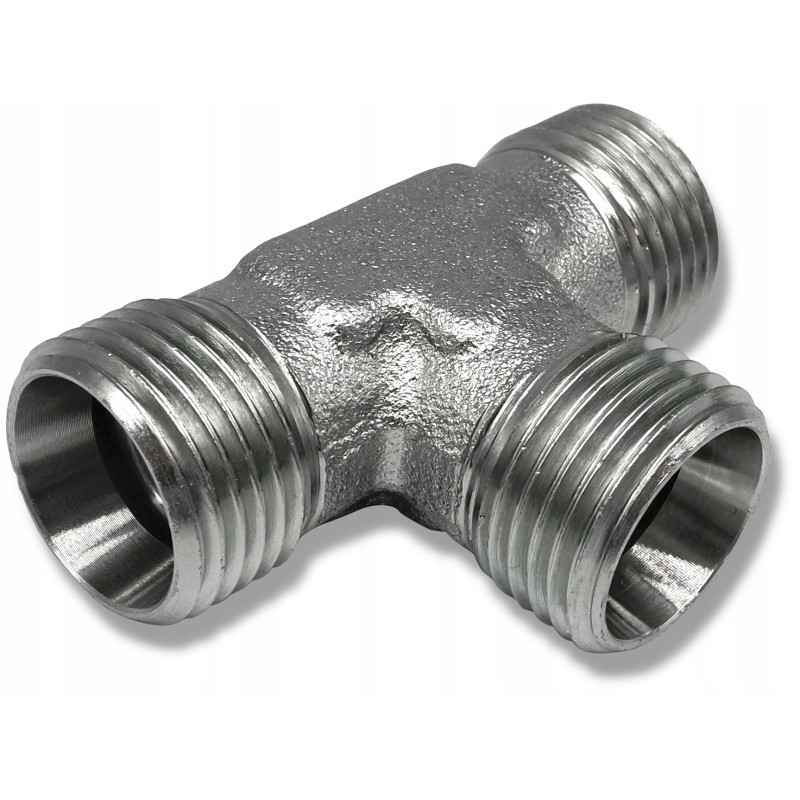

BBB hydraulic connector - tee M14x1.5 - M14x1.5 - M14x1.5 8LKOD SKRAW MET: [2747] Manufacturer: SM-G (SKRAW MET GROUP) Tee connector in a standardized light version with self-sealing cones when tightened.

By none rubber ED seals and a place for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: The connector is designed to connect three wires or to connect with other connectors with the same sealing cone - at an angle of 90°

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 6 mm

M1 thread: external metric M14x1.5

M2 thread: external metric M14x1.5

Thread M3: external metric M14x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable, galvanized, corrosion-resistant steel

Product Details
SM-G
15013531899950
HZ-ZT3-BBB-ML-14x1.5DUUYTU
5 Items
New

Data sheet

Manufacturer
SM-G
Part Number
HZ-ZT3-BBB-ML-14x1.5DUUYTU
Machine Type
Crane, Crane, Lift, Generator, Excavator, Backhoe Loader, Crusher, Loader, Grader, Asphalt Paver, Dozer, Roller, Dumper, Compactor, Other
Machine Brand
Atlas, Bobcat, Bomag, Case, Caterpillar, Doosan, Fadroma, Hitachi, Hyundai, JCB, John Deere, Komatsu, Kubota, Liebherr, New Holland, O&K, Terex, Volvo, Wacker, Yanmar, Zeppelin, Other
Parts manufacturer
SM-G
