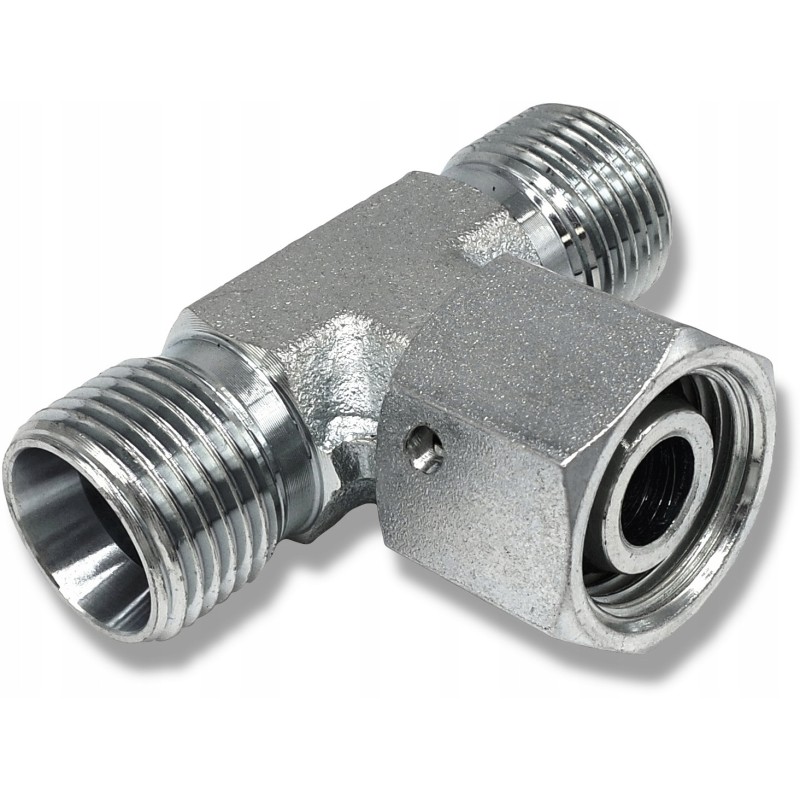

Hydraulic tee connector type bab 18 18 18

BAB hydraulic connector - tee M18x1.5 - M18x1.5 - M18x1.5 12LKOD SKRAW MET: [2958] Manufacturer: SM-G (SKRAW MET GROUP) Tee connector in a standardized light version with self-sealing cones when tightened.

On the side There is an ED seal in the connection port, which fully seals the system. Due to the lack of a rubber ED seal and no space for the seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. This is done using connections that can be purchased at our other auctions.

Application: Used to connect the main components in the hydraulic system (e.g. pump, actuator or distributor) with hydraulic lines.

Perfect for hydraulically powered machines and devices.

Can be be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 10 mm

M1 thread: external metric M18x1.5

M2 thread : internal metric M18x1.5

Thread M3: external metric M18x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable, galvanized, corrosion-resistant steel
