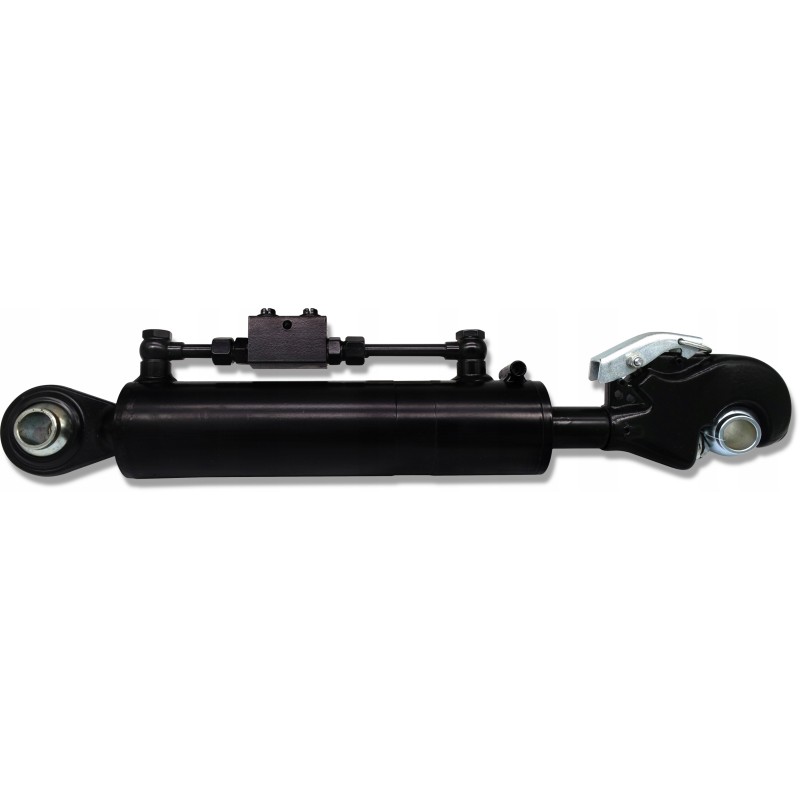

Upper central link hydr 70x36 stroke 220 c 385

POLISH CENTRAL UPPER HYDRAULIC CONNECTOR WITH BALL HEAD AND HOOK, CATEGORY 2 SKRAW-MET CODE: [2117] Manufacturer: Skraw-Met SKRAW-MET is a long-time leader in the production of actuators. Thanks to its experience, it uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this actuator.

The hydraulic connector is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The hydraulic connector is installed in the tractor instead of the central screw. It allows you to raise and lower agricultural machines using hydraulics without leaving the cab. It is intended for tractors with a maximum power of 120 HP, such as - URSUS C-385, C-360 and ZETORA 1224 and derivative models.

THE COMPLETE CONNECTOR INCLUDES:

double-acting cylinder

CBM type hook with automatic ball lock

reinforced ball head

hydraulic valve securing the 'lock'

Technical data: Length of the folded cylinder: 570 mm

Piston stroke: 220 mm

Total length of the cylinder after unfolding: 790 mm

Piston rod diameter: 36 mm

Port outlet: 2x G3/8”

Permissible pressure max.: 250 Bar

Permissible ambient temperature: -40 to +60 C

Permissible oil temperature: -15 to +80 C

Gland type: threaded screwed into the pipe

Piston rod: chrome-plated
