Ball valve price order 6 2 gw 1 180l min 250bar

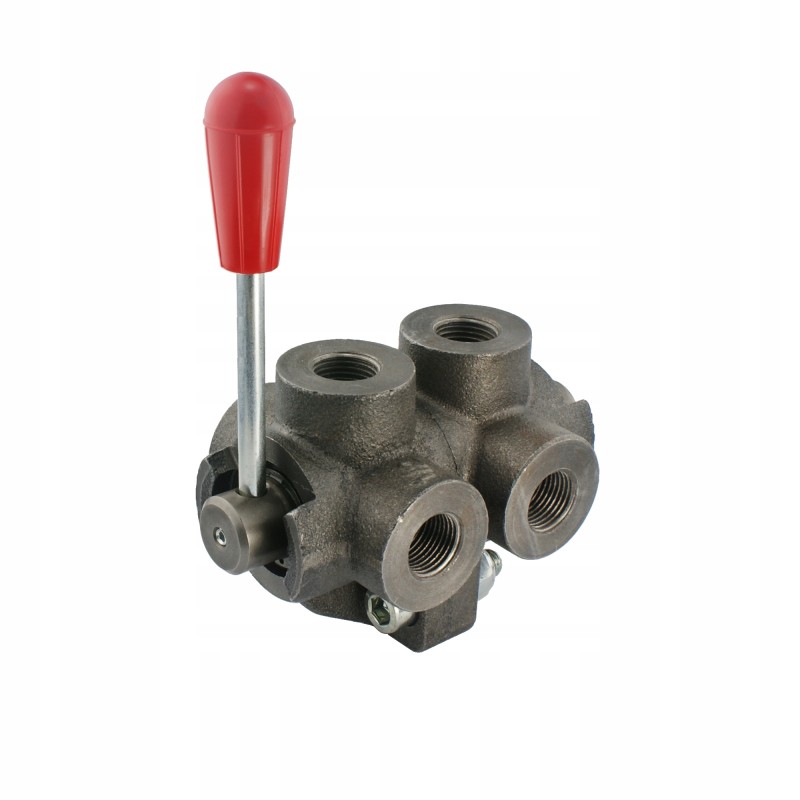

THE HYDRAULIC SIX-WAY BALL VALVE 1' HAS A CENTRAL 'CLOSED' POSITION - i.e. if the lever is in the central 'Z' position, the oil flow through both supply ports P and P1 is blocked. Production:

Original Italian product of the Oleodinamica Marchesini brand, symbol: DF 6 3/4', 1.35.26.030

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

When connected to one section in the distributor, it is ideal for switching control between two double-acting hydraulic cylinders.

Principle of operation:

Valve A 6-way valve is nothing more than two 3-way valves twisted together into one valve, having a common slider and a common control lever. Thanks to this design, the valve allows you to simultaneously control two independent oil streams.

The valve can be controlled even at high pressure.

Connection:

Connection: Connect P and P1 of the supply line, e.g. a section in the distributor, Connect A and B to the first receiver, e.g. an actuator or hydraulic motor. Connect A1 and B1 to the second receiver, e.g. an actuator or hydraulic motor.

Technical data:

Maximum flow: 180L/min

Number of hydraulic holes in the body: 6

Internal threads in the body: [BSP] 1'

Material body: cast iron

Permissible maximum pressure: 250 bar

Weight: 4,200

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Oil hydraulic based on mineral oil
