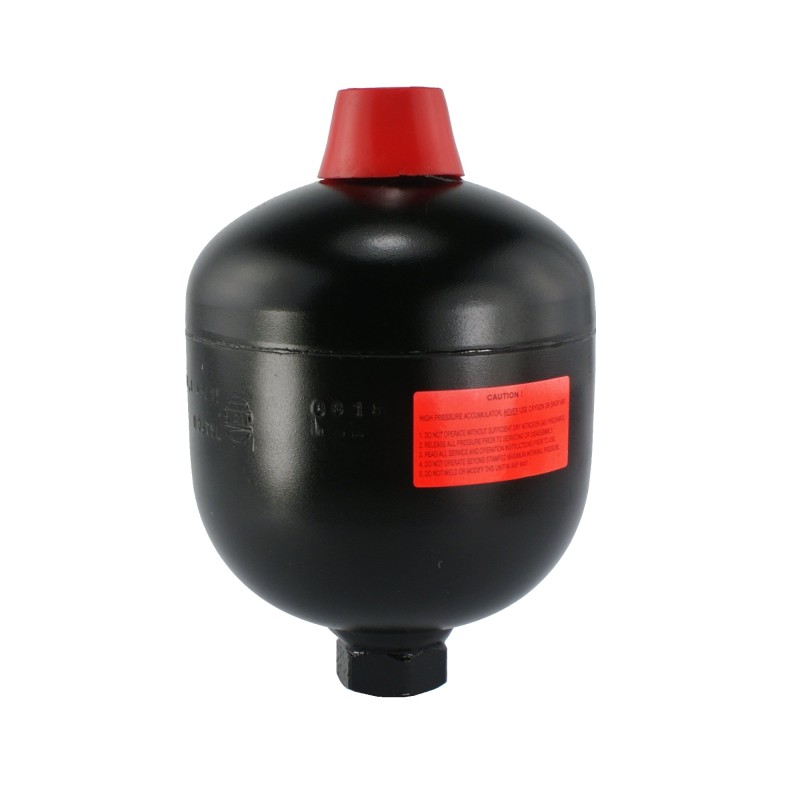

Hydraulic shock absorber 4l 100bar hydrolider

HYDRAULIC SHOCK ABSORBER 4LGRATIS WE ADJUST THE PRODUCT TO THE INDICATED PRESSURE Production:

Original Hydrolider product, symbol: 1.35.61.202

Application:

Widely used in hydraulic systems in agriculture, fruit growing, forestry, construction and broadly understood industry.

Shock absorbers, also known as hydroaccumulators, are used in installations , where there is a periodic demand for hydraulic energy damping. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

They are used in TUR front loaders, agricultural machines, aggregates, plows, subsoilers, construction machines, cranes and other machines that are exposed to sudden pressure surges while driving. hydraulic system.

Shock absorbers are selected according to three main dependencies:

What function will the shock absorber play in the hydraulic system?

The larger the capacity of the hydraulic cylinders, the larger the shock absorber

The greater the load on the hydraulic cylinders, the greater the pressure in the shock absorber

Technical data:

The shock absorbers are factory-installed charged with nitrogen at a pressure of 100Bar. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user.

Internal thread in the body: BSP 3/4'

Maximum amount of oil in the oil chamber: 2.8 L

Total capacity of the shock absorber: 4 L

Body material: cast iron .

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46
