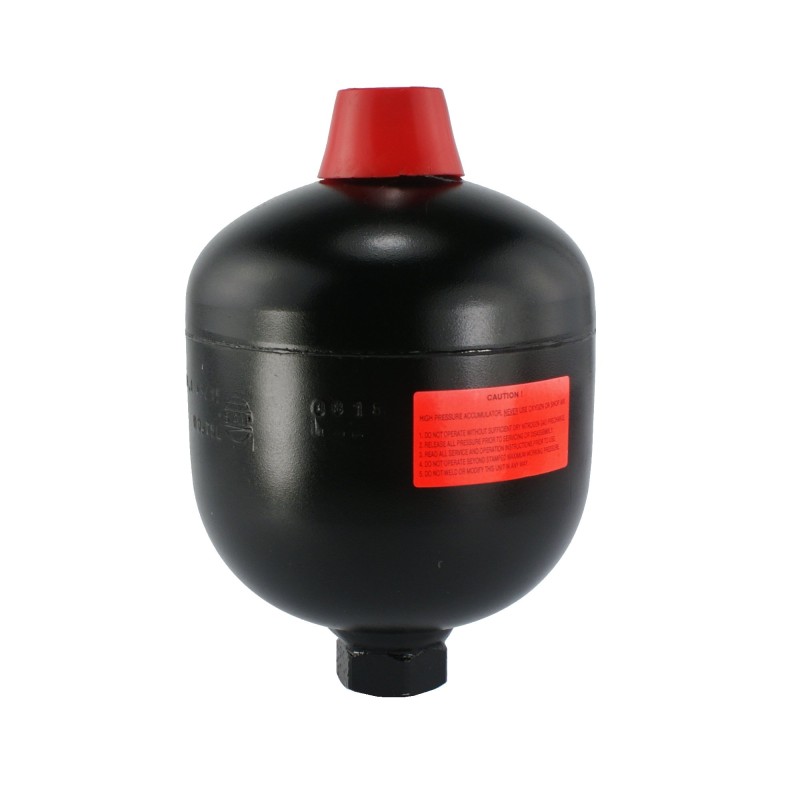

Hydraulic shock absorber 5 64l 100bar hydrolider

HYDRAULIC SHOCK ABSORBER 5.64L FREE WE ADJUST THE PRODUCT TO THE INDICATED PRESSURE Production:

Original product of the Hydrolider brand, symbol: 1.35.61.204

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Shock absorbers, also known as hydroaccumulators, are used occurs in installations where there is a periodic demand for damping of hydraulic energy. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

They are used in TUR front loaders, agricultural machines, aggregates, plows, subsoilers, construction machines, cranes and other machines that are exposed to sudden pressure surges while driving. hydraulic system.

Shock absorbers are selected according to three main dependencies:

What function will the shock absorber play in the hydraulic system?

The larger the capacity of the hydraulic cylinders, the larger the shock absorber

The greater the load on the hydraulic cylinders, the greater the pressure in the shock absorber

Technical data:

Shock absorbers are factory charged with nitrogen at a pressure of 100 Bar. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user.

Internal thread in the body: BSP 3/4'

Maximum amount of oil in the oil chamber: 3.96 L

Total capacity of the shock absorber: 5.64 L

Body material : cast iron

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Oil types recommended by AGRICOLA:

Thinner, high quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46
