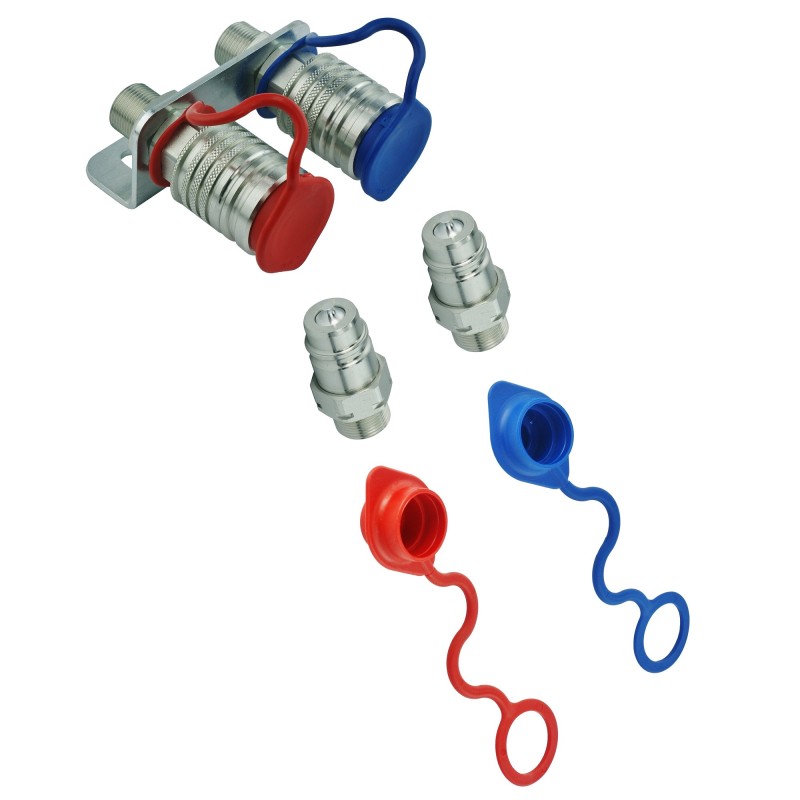

Board with 2 sets of euro m18x1 5 hydrolider

BOARD + TWO SETS OF QUICK CONNECTORSset composition:

2X EURO BULKET SOCKETS M18x1.52X EURO PLUGS M18x1.54X DUST PLUGS1X BOARD MOUNTING TWO QUICK CONNECTORSProduction:

Original product of the Hydrolider brand, symbol: 1.60.55.912

Application Application:

Widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

The sheet can be screwed or welded, e.g. to the frame of the aurochs.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Diameter internal [mm]: 16.2 - 16.6

Technical data of socket quick connectors:

Thread on the cable side: metric 18x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° ( typical for the Polish standard)

Type of quick connector: euro bulkhead socket ISO standard

Material: weldable, galvanized steel, corrosion-resistant

Weight: 0.35 kg

Type of liquid: hydraulic oil

Technical data of plug quick connectors:

Thread on the cable side: metric 18x1 .5

Thread type: short, external

Clamping cone angle: 24° (typical for the Polish standard)

Quick connector type: euro plug ISO standard

Material: weldable steel, galvanized, corrosion-resistant

Weight: 0.20kg

Liquid type: hydraulic oil

Technical data of the board:

Material:

steel sheet

Weldable material:

YES

Sheet thickness:

3mm

Important!

Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled.
