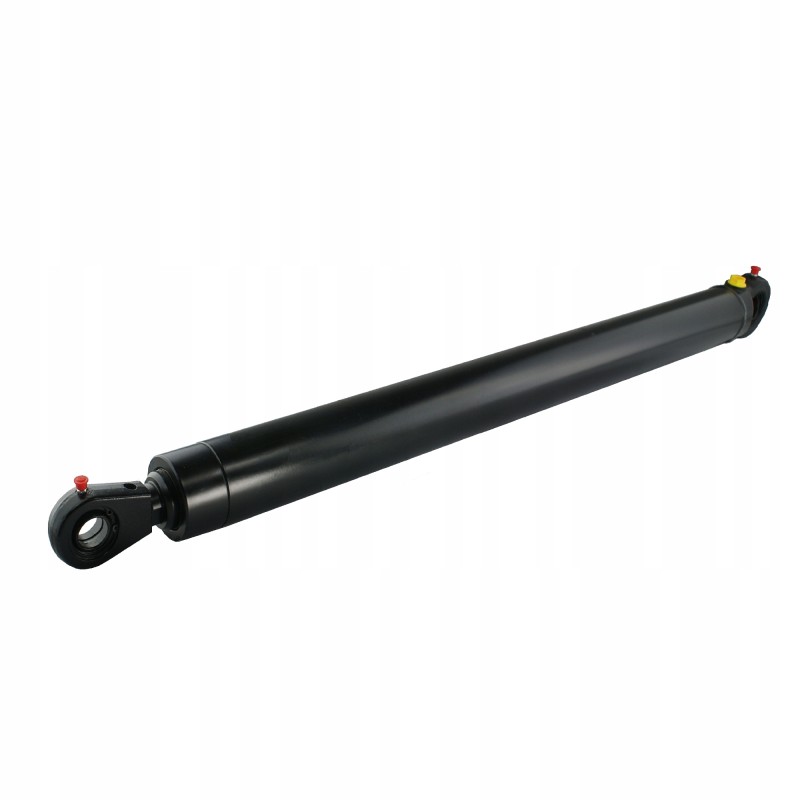

Hydr 50 630 u25 l 870 hydrolider actuator

SINGLE-ACTING PLUNGER CYLINDER, COMPLETE WITH EARS ON SPOTLING BEARINGS Production:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.70.010, CN 50/630 U25

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry .

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

DEAR CUSTOMER, READ THIS BEFORE YOU WILL CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Head mounting on the rod side: screwed on

Gland type (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe): 70 mm

Diameter of the piston rod (rod): 50 mm

Diameter of holes for pins: 25 mm

Stroke (working movement) of the piston rod: 630mm

Idle length measured in the hole axes: 870mm

Internal thread for connection: M16x1.5

Operating parameters:

Maximum permissible operating pressure: 250 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC up to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
