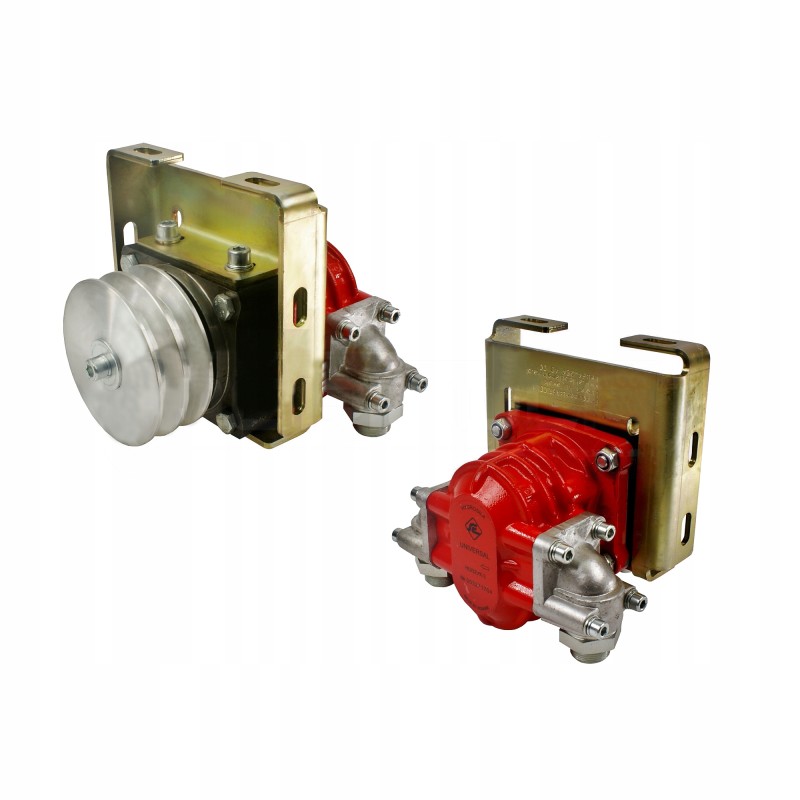

Right pump with bearing, nsz 50cm3 hydrolider

BEARING-MOUNTED HYDRAULIC DRIVE WITH NSZ 50 PUMP, RIGHT AND PULLEY Production:

Original product of the Hydrolider brand, symbol: 2.00.10.051.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Universal, professionally mounted, complete drive with a Hydrosila pump from the Master series, stubs and a double pulley. Designed to work in systems where the working medium is hydraulic oil. Very versatile use, in mobile systems, power steering and hydraulics in tractors, as well as in stationary hydraulic systems according to original designs and others.

Connection:

The pump runs at right speed, i.e. when we look at the pump from the pulley side (in the same position as on in the photo), the wheel rotates clockwise, the discharge is on the right side and the suction is on the left, invisible side.

General characteristics of the set:

The pump is mounted and stabilized on two bearings, which can be replaced and lubricated. Mounting bracket and pulley made of steel, covered with a durable anti-corrosion coating.

total length of the set: 248 mm

total height of the set: 230 mm

total width of the set measured with connections to the pump: 225 mm

total width of the set measured without connections to the pump : 130 mm

Dimension of the mounting bracket: 197x185

total diameter of the pulley: 120 mm

diameter of the pulley where the belt is attached: 90 mm

type of belt on the pulley HB 17mm

Technical data and operating parameters of the pump:

working volume: 50 cm3 /rpm

capacity at 1500 rpm: 75 l/min

maximum revolutions: 2400 rpm

minimum revolutions: 500 rpm

maximum continuous pressure: 160 bar

maximum instantaneous pressure: 210 bar

Main advantages of Hydrosila series pumps Master:

light and compact design

precision of workmanship

long service life and reliability

good heat dissipation

operation at very high speeds and pressure allowed

low price compared to the European pump series
