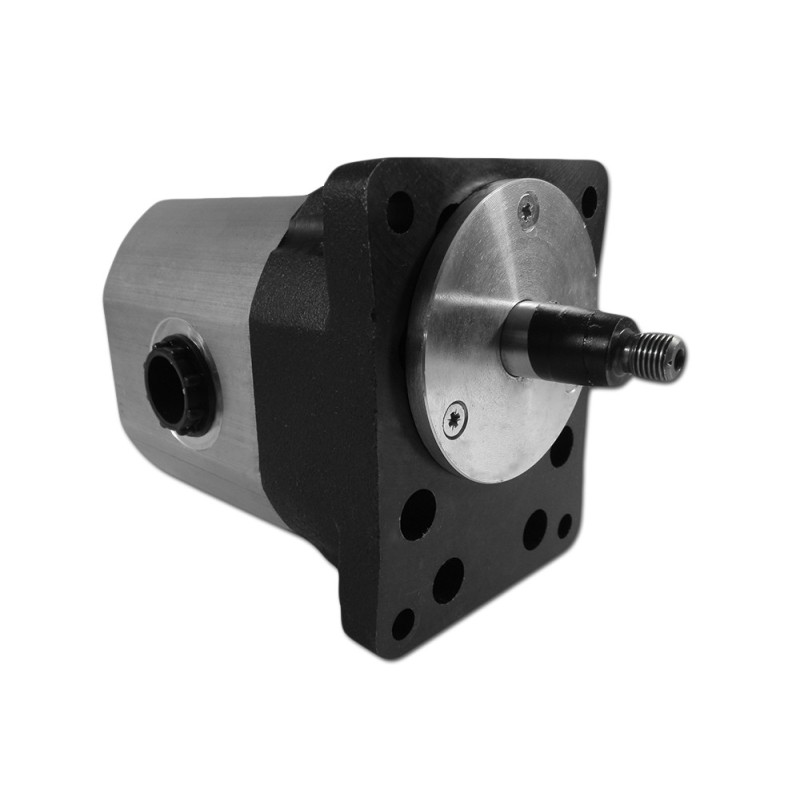

Hydraulic pump old type Bison from 056 from 058

HYDRAULIC PUMP BIZON Z056 COMBINE (OLD TYPE) PZS-KP-25 HYLMETHYDRAULIC PUMP BIZON Z056 COMBINE OLD TYPE

TECHNICAL PARAMETERS

Geometric volume: 19 cm3/ rev

Capacity: 31 l/min (1600 rpm). Direction of rotation: left

Rotational speed: 800 - 2500 rpm Nominal pressure: 16 MPa Maximum pressure: 20 MPa Country of origin: Poland

Producer: Tuchola Hylmet

Application: BIZON

Hylmet pumps are something of a phenomenon on the Polish market. In the era of cheap, eastern substitutes, the products of this manufacturer are distinguished by their solid workmanship and, above all, the uniqueness of the structure, which was designed specifically to work in difficult conditions encountered by agricultural or forestry equipment. Hylmet pumps have unique solutions, unheard of in old structures from the socialist era. . These are the company's original ideas, most of which have patents. The parameters of pumps manufactured by Hylmet are calculated in real working conditions and not, as in the case of other companies, only in laboratory conditions.

If you want to forget about replacing the pump for a long time and at the same time enjoy high power and efficiency, choose this product. This is the best price-quality ratio, which results from the following characteristics:

- high-quality castings that are not 'slimmed' like most substitutes. Thanks to this, high efficiency can be achieved without the risk of damaging the pump - all parts are made on CNC machines, thanks to which the manufacturing accuracy is achieved at the level of one hundredth of a millimeter,

- gears made of the highest quality steel, hardened, ground and polished. This treatment ensures maximum durability and at the same time ensures quiet operation - modern sliding bearings. The bearing journals of the gear wheels are characterized by a large diameter - while achieving a high load-bearing capacity.

- sliding inserts are covered with a specially selected bearing alloy, which ensures the required durability and low coefficient of friction.

PZS-KP-25
