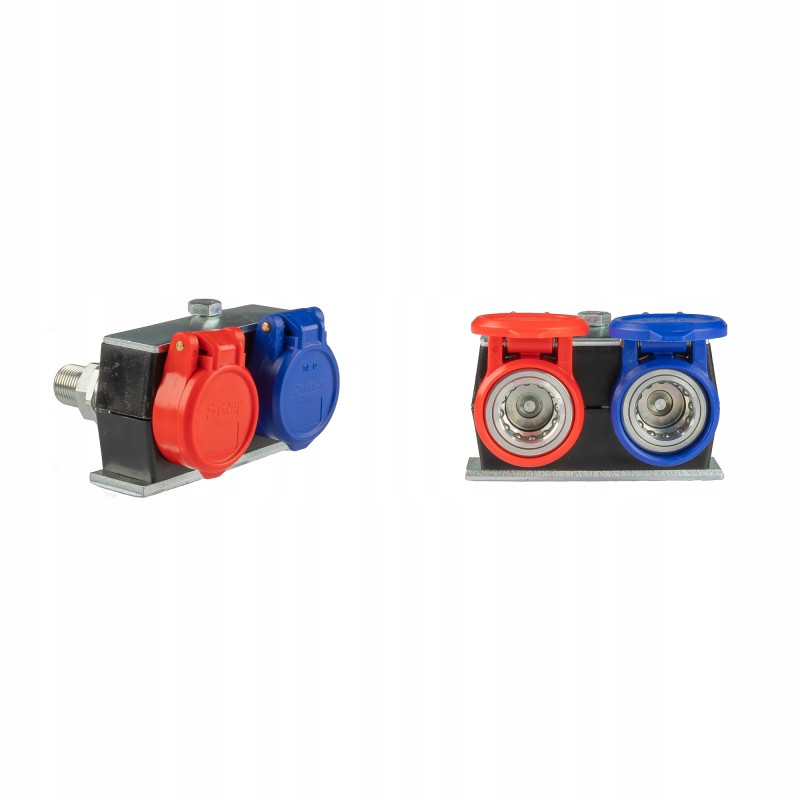

Push pull set 2x euro m18 socket with hydrolider

HYDRAULIC QUICK CONNECTORS, EURO ISO M18x1.5 SOCKETS, OPERATING IN THE PUSH-PULL SYSTEM Production:

Original product of the Hydrolider brand, symbol: 1.60.55.500.18

Application:

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor. The PUSH-PULL system allows you to insert or remove the plug from the socket without the need to additionally unlock the socket by pulling its body back. Mounting in the PUSH-PULL system only requires pressing or pulling the plug or the hydraulic cable screwed to it. The condition for the socket in the PUSH-PULL system to work is that it can be moved, together with the hydraulic cable connected to it, by a range of approximately 20 mm towards the plug. Therefore, sockets screwed directly to rigid pipes or rigidly attached cables cannot operate in the PUSH-PULL system. Additionally, it is required that the base of the socket mounting bracket be permanently attached (e.g. welded) to a permanent structural element of the machine or tractor. Quick coupler hydraulic sockets (PUSH PULL). The most popular hydraulic quick couplers with a very wide range of applications. This type of quick coupler socket protects against breakage of the hydraulic hose and loss of hydraulic oil in the event of its unintentional stretching - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installing the quick coupler socket to the tractor body using the locking sleeve). Connecting and disconnecting hydraulic lines is done with one hand).

Technical data:

Type of quick connectors: M18x1.5 Euro sockets PUSH-PULL ISO standard

Material of quick connectors: galvanized steel

Bracket material: plastic center, upper plate and base made of steel

End material: plastic

Total dimensions of the set: height: 71mm, width: 110mm, length: 80mm
