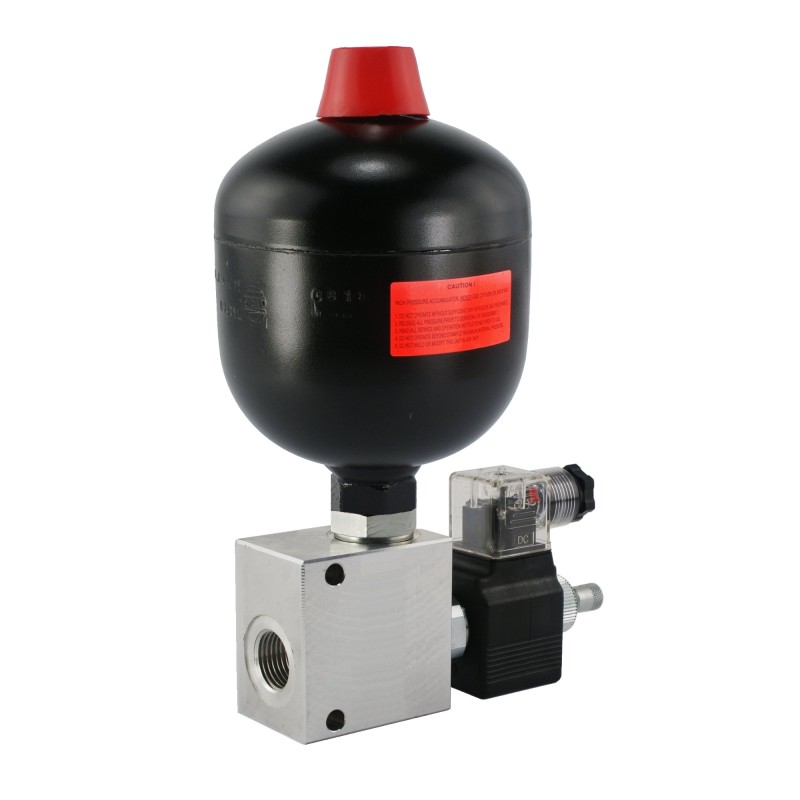

Hydroaccumulator capacity 1l, 12v hydrolider valve

HYDRAULIC SHOCK ABSORBER 1L WITH ELECTRIC VALVE. 12V OFF, WE REGULATE THE PRODUCT FOR THE INDICATED PRESSURE FOR FREE. Production:

Original product of the Hydrolider brand, symbol: 1.35.62.100.12

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Shock absorbers, also known as hydroaccumulators, are used in installations where there is a periodic demand for damping hydraulic energy. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

They are used in TUR front loaders, agricultural machines, aggregates, plows, subsoilers, construction machines, cranes and other machines that are exposed to sudden pressure surges while driving. hydraulic system.

Shock absorbers are selected according to three main dependencies:

What function will the shock absorber play in the hydraulic system?

The larger the capacity of the hydraulic cylinders, the larger the shock absorber

The greater the load on the hydraulic cylinders, the greater the pressure in the shock absorber

Technical data:

Shock absorbers are factory charged with nitrogen at a pressure of 100 Bar. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user.

An electric valve is used to turn the shock absorption on and off depending on your needs.

Internal thread in the body: M18x1.5

Maximum amount of oil in the oil chamber: 0 .7L

Total capacity of the shock absorber: 1L

Body material: cast iron

Drawing with the dimensions of the 1L shock absorber (photo):

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to + 80 C

Oil type: Hydraulic oil based on mineral oil

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Drawing with dimensions of the electric valve (photo) :

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled on your own. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled.
