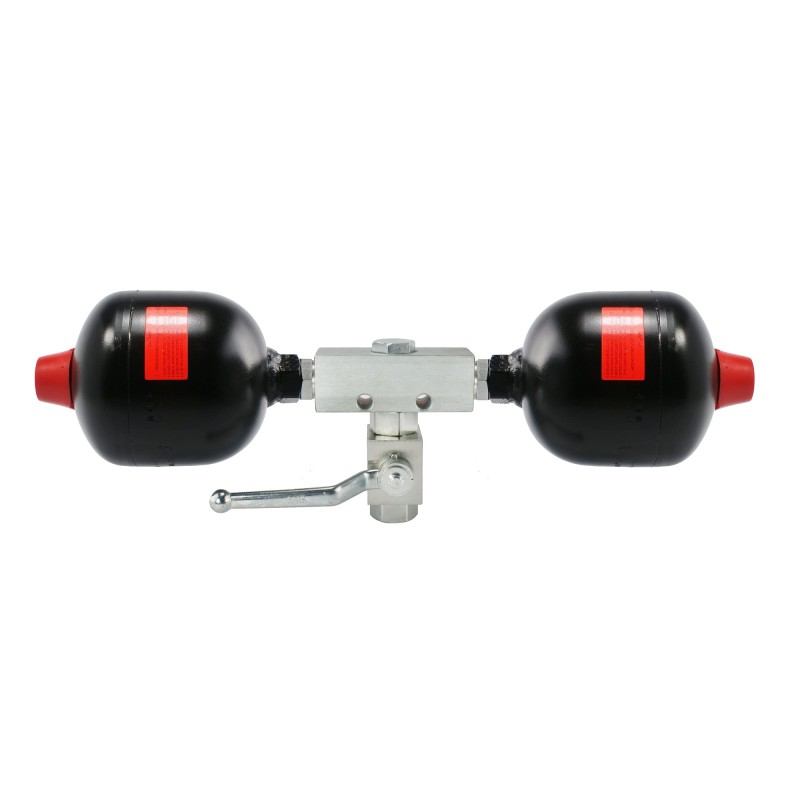

Hydroaccumulator 2x1l hydrolider ball valve

DOUBLE HYDRAULIC SHOCK ABSORBER 2x 1L WITH SHUT-OFF BALL VALVE Production:

Original Hydrolider product, symbol: 1.35.64.100

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Shock absorbers, also known as hydroaccumulators, are used in installations , where there is a periodic demand for hydraulic energy damping. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

Double shock absorbers are used mainly in TUR front loaders, construction machines, cranes and other machines that are exposed to sudden pressure surges in the hydraulic system while driving or working.

Shock absorbers are selected according to three main dependencies:

what function will the shock absorber play in the hydraulic system?

the larger the capacity of the hydraulic cylinders, the larger the shock absorber

the greater the load on the hydraulic cylinders, the greater the pressure in the shock absorber

Technical data:

The shock absorbers are factory-charged with nitrogen at a pressure of 70 and 30Bar. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user. The ball valve is used to turn the shock absorption on and off depending on your needs.

Internal thread on the ball valve body: BSP 1/2'

Internal thread in the shock absorber body: M18x1.5

Total capacity of one shock absorber: 1L

Maximum amount of oil in the oil chamber : 0.7L

Shock absorber body material: cast iron

Connecting block material: galvanized steel

Ball valve material: galvanized steel

Why two shock absorbers?:

The set has one so-called shock absorber. soft and one hard. The pressures on both are different, set specifically for operation in TUR front loaders or other similar agricultural machines and construction loaders. Different pressures provide cushioning under different operating conditions.

When the vehicle is moving with a load and when the vehicle is moving without any load. In each of these cases, a different shock absorber will be responsible for shock absorption.

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled by yourself . Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled.
