Distributor 80l 4sec latch joystick set round

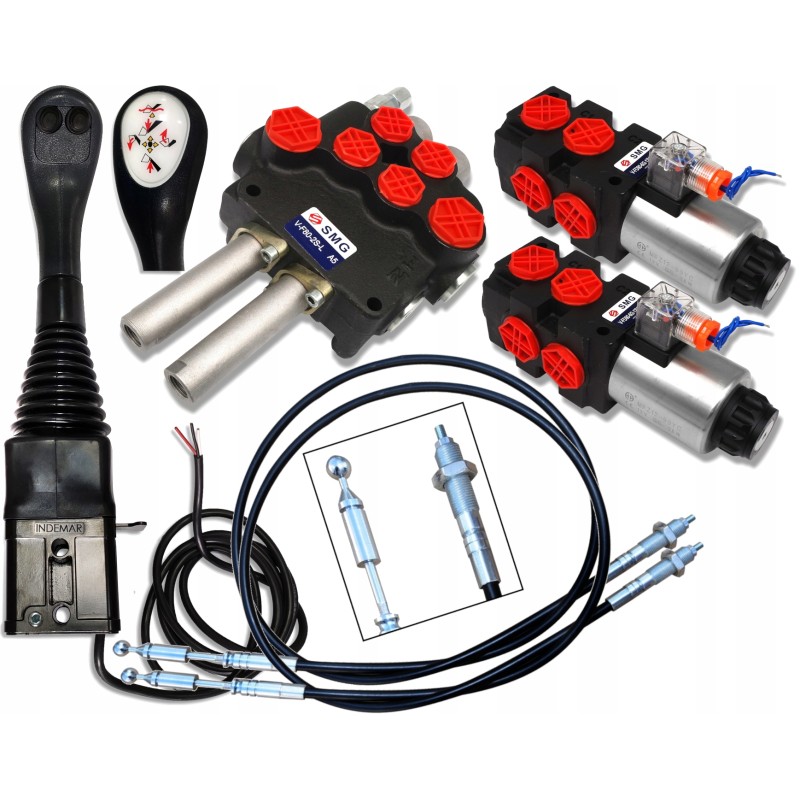

4-section hydraulic set 80L/min with a floating section and a latch for TURAKOD SKRAW MET: [8490]The set includes: ball joystick with 2 buttons [0172]

2x 2m long cables [0203]

2-section hydraulic splitter 80L /min - floating section + latch [1724]

2x solenoid valve - divider 6/2 12V 90L/min [1962]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket inclination) and two additional sections after pressing the buttons.

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture and forestry or construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 80L, FOR CABLES + FLOATING SECTION WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber. It is characterized by a compact design, stable operation and high versatility.

Allows you to control from the cab (using cables and joystick) two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required) .

Thanks to the latch with a latch, the distributor is ideal for machines and devices where there is no need to keep your hand on the joystick all the time.

The (high-quality) monoblock distributor with a parallel system and a floating (absorbing) chamber.

!ATTENTION! In a given distributor, the section with a latch is located in only one section with a FLOATING FUNCTION

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

Universal distributor, can be used in various types of machines such as: Cyclops

Tourists

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latch with a latch, i.e. it holds the position in the working position

Position 0 neutral (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear) the actuator piston rod retracts.

The three-position slider (1 - 0 - 2) springs back to the vertical position on its own Position 0 neutral (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear) the actuator piston rod retracts.

Connection: Supply (P) BSP 3/4''

Return (T) BSP 3/4''

Output to sections BSP 1/2''

BSP connection 3/4'

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.

Solenoid valve 6/2 12v 90 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP) This solenoid valve is an ideal solution when the hydraulic distributor (to control an actuator) lacks an additional section to control another actuator.

Used in hydraulic control, most often with a 2-section distributor, as 3-section, e.g. gripper, crocodile, etc.

Up to 3 valves can be connected in series to one block using flanges.

High-quality solenoid valve, characterized by a compact structure, stable operation and high versatility.

Application: The distributor is perfect for machines and hydraulically powered devices.

It can be used in agriculture, horticulture, forestry and construction.

Example of use of the solenoid valve: two double-acting hydraulic actuators controlled by one section in the distributor. Thanks to it (using an electric impulse caused by a button), we can control two independent double-acting actuators.

This button is usually located on the control element, i.e. a lever or joystick.

Please take into account the fact that it does not allow you to control two actuators at the same time.

Technical data: Threads (BSP): 3/4'

Maximum oil flow: 90 l/min

Voltage: 12 V

Maximum working pressure: 315 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

CONNECTION: A1 - A2 POWER SUPPLY / RETURN ( regardless of whether A1 or A2 is a return or power supply) B1 - B2 - C1 - C2 OUTPUTS FOR RECEIVERS (e.g. ACTUATORS) JOYSTICK WITH 2 BUTTONS Designed for mechanical control of frame lifting, shovel inclination and bale grabber or crocodile + additional fourth section. Solid joystick enabling mechanical control of four-way hydraulic control valves of TURA (loader) using two cables and two buttons.

Allows remote control (from the cabin) of distributors that are located outside the cabin.

Application: Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, such as: agricultural machines , tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Technical specifications: Operating temperature: from -30°C / to +80°C

Cable hole Φ14 mm

Lock lever

M8 self-locking pin for cable attachment

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to lock the joystick head movements to prevent accidental activation: Locked joystick head_

Unlocked joystick headCable for controlling the ball distributor 2m POLISH product SUPER DURABLEThe cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick/lever.

It can be used in agriculture, horticulture, forestry, construction and the broadly understood industry.

Ends: End of the cable on the joystick side with a ball with a diameter of 14 mm

End of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
