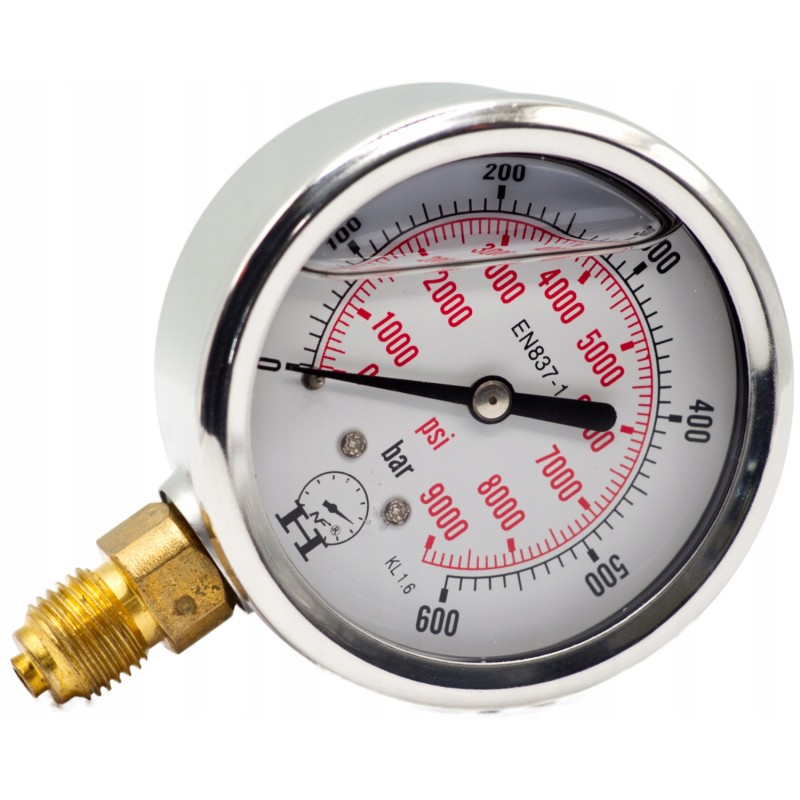

Hydraulic timer pressure gauge 600 bar 63mm

Hydraulic pressure gauges 0-600 Bar with a 1/4' bottom connection with a disc diameter of 63 mm, filled with glycerin. Glycerin pressure gauges (clocks, pressure gauges) are basic instruments enabling monitoring the pressure value and its changes in hydraulic oil, gases or other fluids (indifferent to copper alloys). ).

Manometers equipped with a Bourdon tube offer the best level of accuracy in their class of 1.6% FS (full scale).

By filling the manometer with glycerine, the internal pressure element and mechanism are effectively damped. These pressure gauges can be used in systems with high dynamic loads and in places with a high degree of vibration.

The offered pressure gauges are equipped with a special plug that allows it to be vented for internal pressure compensation.

The double BAR/PSI scale affects the most universality of the pressure gauges, enabling easy reading of the indications for people working according to various standards of pressure units.

Sample applications

Agriculture, construction industry, stationary industry, forestry, maritime industry: hydraulics, compressors

Pressure gauge specification: Measuring range: 0-600 Bar

Disc diameter: 63 mm

Connection: 1 /4' BSP (manometric), SW14 (key)

Connection location: bottom (side)

Measurement accuracy: 1.6% FS (full scale)

Dual scale: yes

Ambient temperature range: -20C... +60C

Ambient temperature range: max. +60C

Filling: glycerin

Standard: EN837-1

We offer pressure gauges in the ranges of 1-1000 bar (and vacuum gauges from -1Bar), with a dial of 63 and 100 mm, additionally we offer in other auctions : connections, test leads, pressure gauge covers and other parts and accessories.
