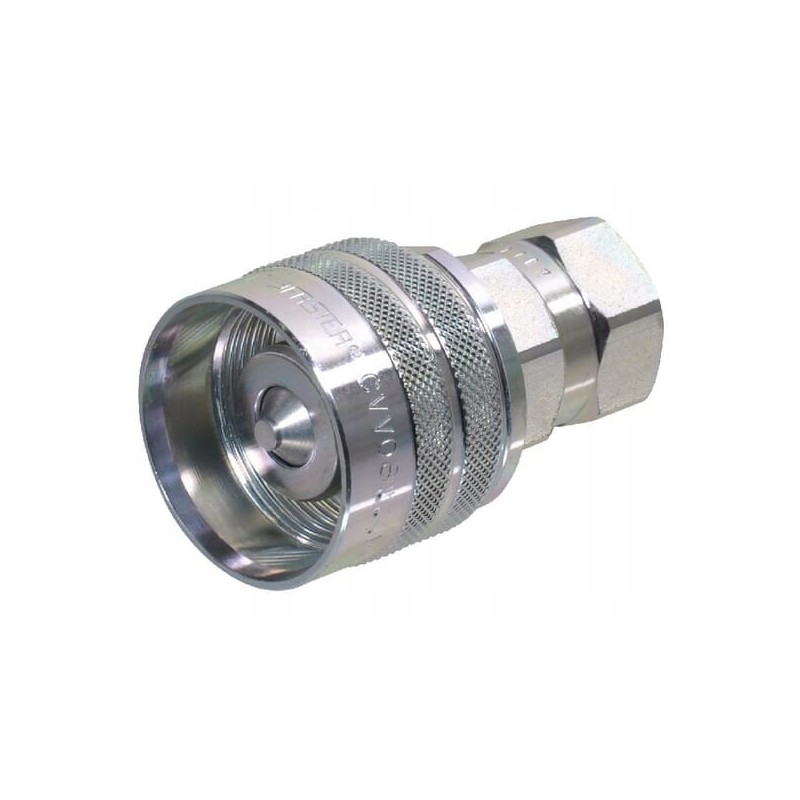

Screwed quick connector bg3 plug internal thread 1 2

BG3 screwed quick connector, internal thread plug. 1/2' BSP type CVV Faster Parameters

Part Number: CVV0812GASMV

Unit: Piece

Manufacturer: Faster

Size: 1/2 inch

Shape: Straight - 2 Sides Connector

Connector Type #1: Quick Connect

Connector Type #1 - Male/Female: Male

Connector #1 Diameter [D1]: 42 mm

Flow at 2 bar pressure: 75 l/min

Outer diameter: 1.65 inch

Material: Steel

Surface treatment: Chrome plated

Working pressure: 400 BAR

Max. operating temperature: 160 °C

Operating temperature min.: -25 °C

Type of quick connector lock: Thread

Connection method: Screwed

Disconnection method: Screwed

Seal material: Fluo rubber [FPM]

Valve type: Mushroom head

Weight: 234.7 g

Thread type connector no. 1: BSP

Connector type no. 2: Thread

Connector type no. 2 - male/female: Female

Connector no. 2 thread diameter: 1/2 inch

Number of turns per inch of connector no. 2 thread: 14

Connector no. 2: BSP

Wrench size for connector no. 2: 27 mm

Ability to connect under pressure: Yes

ISO standard: 14541

Total length: 2.76 inch

Total length [L1]: 70 mm

Specifications

- Heavy Duty Version

- Viton seals

Benefits

- Durability even under heavy loads - Suitable for high operating temperatures Application

- Universal use

- Construction machinery

- Hydraulic hammers

- Agricultural machinery

- Mineral oil based fluids Properties

- Designed for high dynamic loads - With ball valve

- High availability of equivalents from other manufacturers on the European market Technical information

- The connector should be screwed in until it stops Connector #1 key size

- 27 mm

- 36 mm

Key size of connector #1 [HEX]

- 1.06 inch

- 1.42 inch
