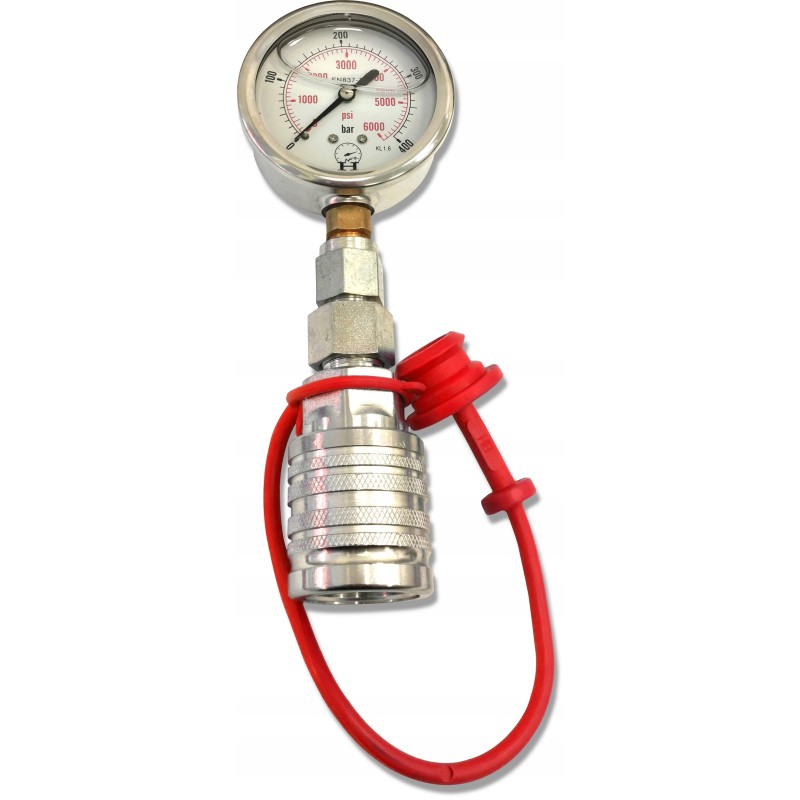

Pressure gauge with a set of quick connectors euro 0 400 red

MEASURING SET FOR CHECKING PRESSURE IN A HYDRAULIC SYSTEM CODE SKRAW-MET: [8022] GLYCERINE MANOMETER WITH EURO QUICK CONNECTOR PRESSURE MEASURING RANGE: 0 - 400 BAR Manometers intended for measuring liquid pressure in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

The pressure gauge is filled with glycerin inside. The glycerine pressure gauge differs from standard pressure gauges because the interior is filled with glycerine, which protects and protects the pointer against vibrations and oscillations.

Glycerin also allows you to increase the level of measurement accuracy.

It has a plug to equalize the pressure inside the manometer with atmospheric pressure.

Application: The glycerine pressure gauge is perfect for hydraulically powered machines and devices.

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Kit components: [0313] Hydraulic pressure gauge, pressure gauge 0 - 400 BAR

[1403] Manometric connector G1/4' - M18x1.5

[1416] Euro slot dust cover plug (red)

[0164] Quick hydraulic connector, EURO socket M18x1.5

Technical data: Pressure measurement range: 0 - 400 Bar

Outer diameter of the clock: 63 mm Clock thickness: 30 mm Connection port thread [BSP]: 1/4' (a special connection is required, available on our other auctions)

Operating temperature: -10°C to +50°C

Accuracy class: 1.6

Material: steel housing, glass viewfinder (REVIEW PHOTO - depending on the delivery, the pressure gauge and other elements may differ visually, but their functionality is identical to the description.)
