Straight connection ed bb m20x1 5 m20x1 5 hydrolider

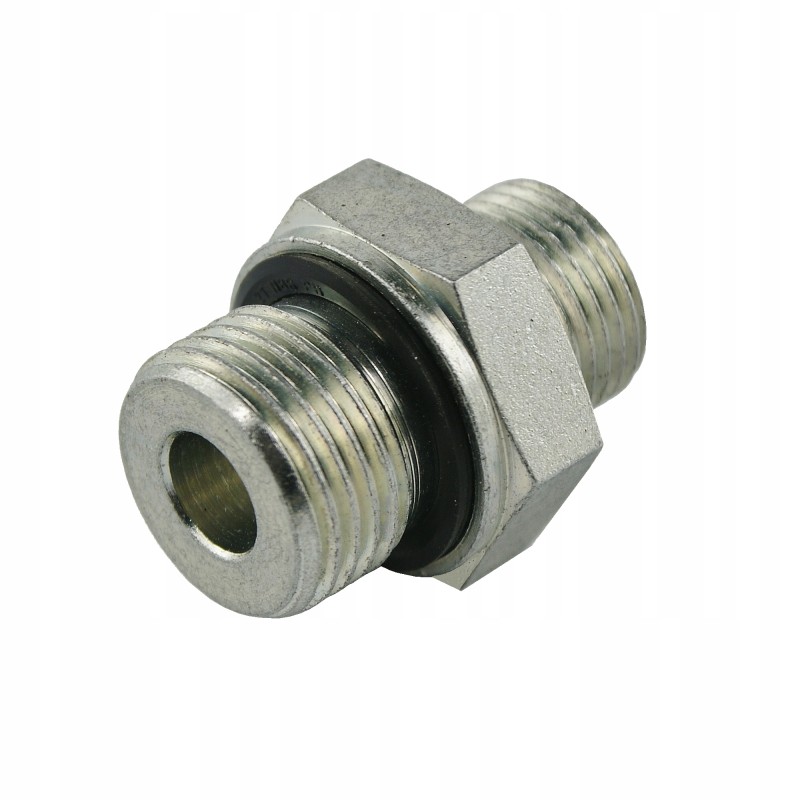

STRAIGHT HYDRAULIC CONNECTION BB 20 - 20 Production:

Original product of the Hydrolider brand, symbol: 1.60.24.011

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with a rubber seal, screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing on a pipe, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body. Not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Helpful data:

M20x1.5 thread diameter measured with a caliper:

Outer diameter [mm] : 19.6 - 19.9

Inner diameter [mm]: 18.2 - 18.6

Technical data:

Clamping cone angle: 24 ° (typical for the Polish standard)

Nominal diameter of the passage: 13mm

Thread on the body side: external metric 20x1.5

Thread on the cable side: external metric 20x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable steel, galvanized, corrosion-resistant
