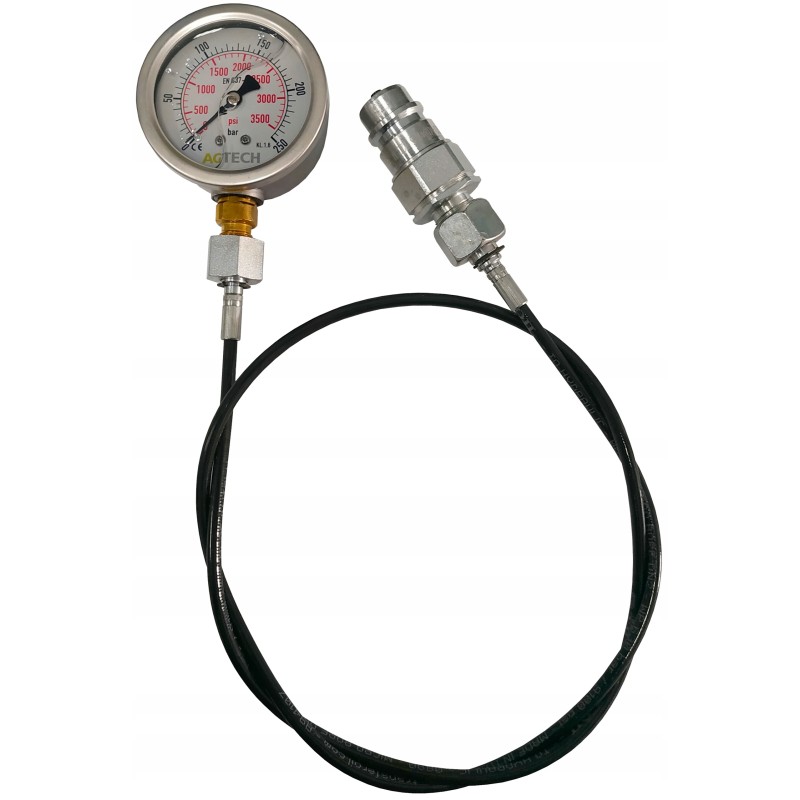

Set for measuring hydraulic pressure in a 250 tractor

Hydraulic Pressure Measurement Set in a Tractor with a Pressure Gauge 0-250bar and a EURO M18 Plug[8037]Used for constant control of the pressure of the hydraulic system in tractors, combines, construction machines, etc. The glycerin pressure gauge is perfect for hydraulically powered machines and devices.

The pressure gauge enables measurement of liquid pressure in a closed hydraulic system.

The set includes: Hydraulic Pressure Gauge 0-250 BAR [0312]

Measuring Cable G1/4'' \ M18x1.5 \ L1000mm [1919]

Euro Plug M18x1.5 [0162]

63mm glycerine manometer for measuring pressure: 0-250 bar, solidly made [0312]

The glycerine manometer differs from standard manometers because its interior is filled with glycerine, which protects and protects the pointer against vibrations and oscillations.

Glycerine also allows you to increase the level of measurement accuracy.

Data technical:

Pressure measurement range: 0-250 Bar

Outer diameter of the clock: 63 mm

Connection port thread [BSP]: 1/4'

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Material:

Steel housing, glass viewer

HYDRAULIC QUICK CONNECTOR, EURO PLUG, THREAD 18x1.5 [0162]

Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system.

Very helpful when connecting multiple times. and disconnection of various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: Euro ISO standard

Quick connector type: plug

Thread type: short, external

Material: galvanized steel

We also have sets on our other auctions with pressure gauge 0-400bar and the product code is: [8038]
