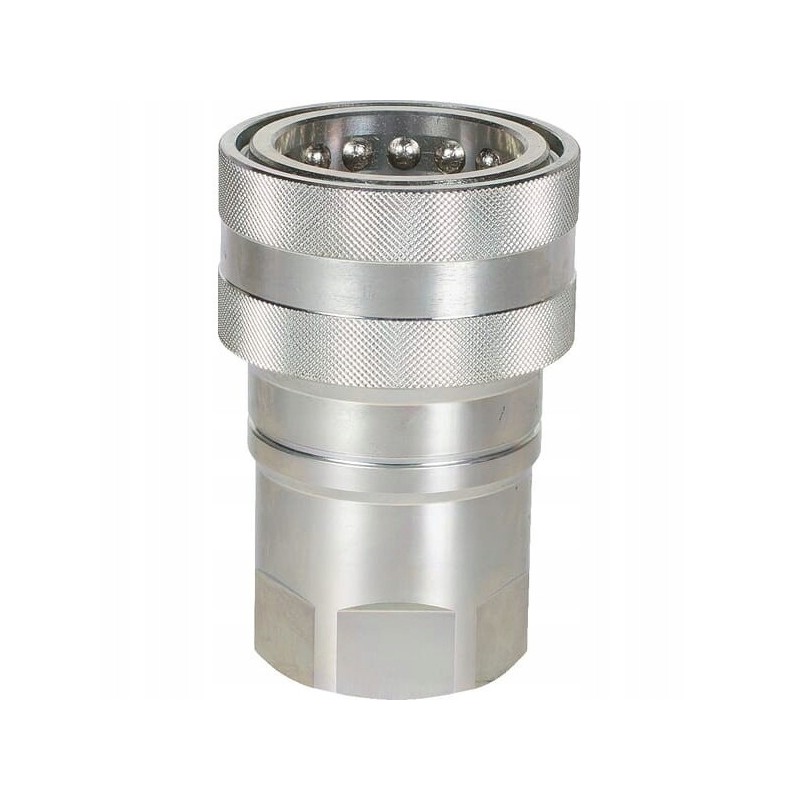

Nv112gasf quick connector 1 1 2 bsp ig

1/2 BSP IG Quick Connector INDEX: NV112GASF

Material: Steel

Specifications: - Easy connection thanks to light springs in the connector sleeve

Benefits: - Easy operation

Features: - Axial rearward actuation of the locking sleeve (single-acting) - Induction hardening in places exposed to rapid wear - No break-off function - Large number of locking balls

Valve type: Poppet< p>

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Viticulture - Mineral oil based fluids

Size: 37 .5mm

Outer diameter: 84mm

ISO standard: 7241-A

Series: NV

Connector thread diameter: 1/2 inch

Connection diameter: 84mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 166mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 2383.2g

Operating pressure: 200BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125°C

Minimum operating temperature : -25°C

Type of quick connector lock: Balls around the circumference

Connection method: Shifting the sleeve

Method of disconnection: Shifting the sleeve

Connection No. 2 Type: Thread

Connection No. 2 Thread Diameter: 1-1/2inch

Connection No. 2 Thread Type: BSPP

Number of Threads per Inch of Thread connectors no. 2: 11

Flow at 2 bar pressure: 450l/min

Type of connector no. 1: Quick connector

Type of connector no. 1 - male/female: Female

No.1 connector key size: 60mm
