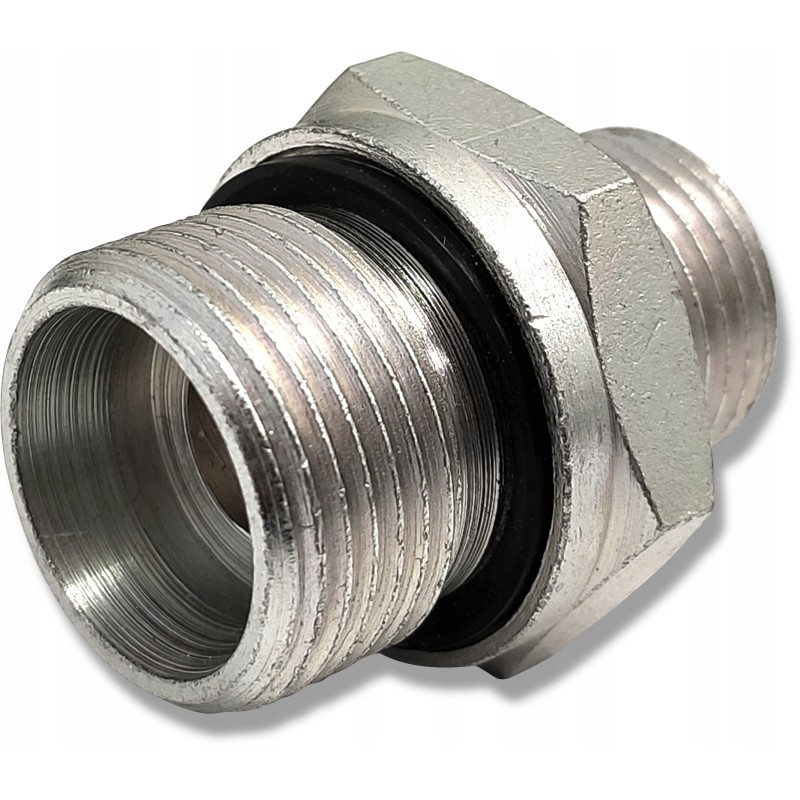

Straight hydraulic connection with nipple seal 16 1 4

Straight hydraulic connection - nipple M16x1.5 - G1/4'MET CUTTING CODE: [1556]Attention! Illustrative photos! The actual proportions of the offered connection may vary! You will find detailed information about the product in the specifications below! Manufacturer: SM-G (SKRAW MET GROUP) Used to connect the main components in the hydraulic system with hydraulic lines.

On the connection side there is an ED seal, which in fully seals the system.

The other side is responsible for connecting the hydraulic conduit or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines. For this purpose, connectors available at other auctions are used.

Application: The hydraulic connection is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.< p>

The connection is designed to be screwed into the body of, among others: pump, distributor, actuator, etc.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Total length: 30 mm

Spanner: 19 mm

Nominal diameter of the passage: 6 mm

G1 thread on the body side (thread with seal ): external inch 1/4'

M2 thread on the cable side: external metric M16x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connection version: light

Material: weldable steel, galvanized, corrosion-resistant
