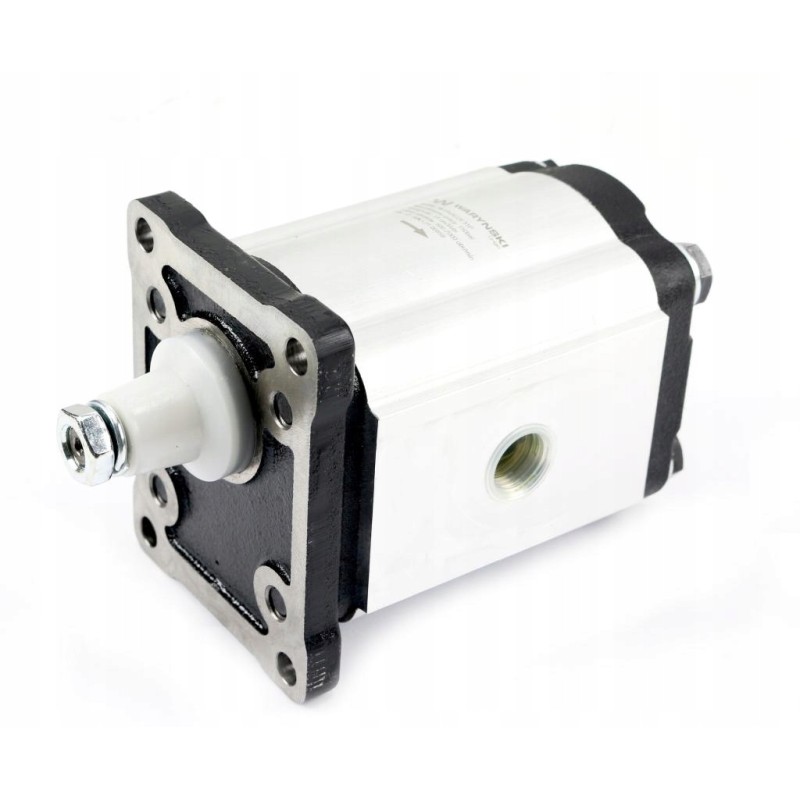

Hydraulic pump 31 0 cm3 max 150 bar Warynski

Hydraulic gear pump 31.0cm3 group 2 - European type shaft 1:8 threaded connections right hand rotation max.150 bar WaryńskiGear hydraulic pump 31.0cm3 right hand rotation max.150 bar Waryński *Parameters:

*Recommended oil viscosity: 10 up to 100 mm²/s (cSt)

*Type: Hydraulic gear pump, 2nd group. European type

*Capacity: 31.0 cm3/rev

*Material: Aluminum body, cast iron plates, seals: NBR

*Direction of rotation: right

*Shaft: conical 1:8, M12x1.5

*Rotation range: 500 - 2000 rpm.

*Spacing of mounting holes: 71 .5 x 96.2mm

*Centering flange: ø 36.5mm

*Max. nominal pressure: 15 MPa (150 bar) - Note: maximum continuous operating pressure of the pump

*Max. Instantaneous pressure: 18 MPa (180 bar) - Note: maximum 20 seconds / 1 minute of pump operation (exceeding these parameters may damage the pump)

*Max. peak pressure: 20 MPa (200 bar) - Note: maximum 8 seconds / 1 minute of pump operation (exceeding these parameters may result in immediate damage to the pump)

*Type of oil: hydraulic mineral HLP HV (DIN 51524)

*Oil filtration: 10 - 25 microns

*Oil purity class: NAS 1638: 8 / ISO 4406:1999: 20/18/15

*Operating temperature : ˗20°C ...+80°C

*Connections: threaded, suction: 3/4'BSPP, discharge: 1/2'BSPP

*Interchangeable indexes: PLP2031D082E2 25702009

-️ Application: Agricultural machinery forestry machines mobile hydraulics industry forklifts gardening equipment loaders hydraulic power supplies.

* Manufacturer: Waryński
