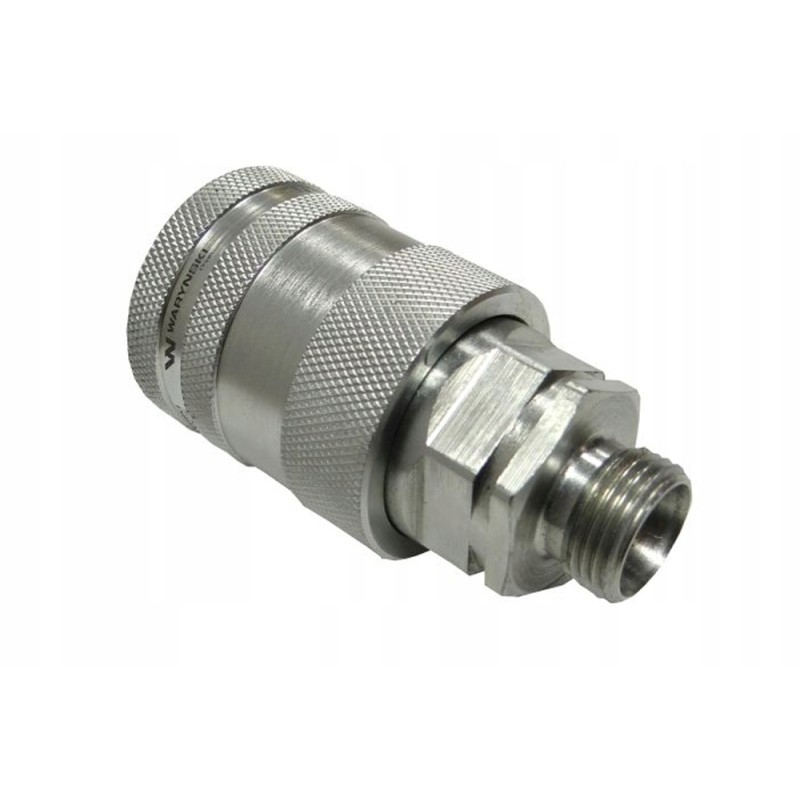

Hydraulic quick connector, M18x1 5 socket, Euro connection

HYDRAULIC QUICK CONNECTOR M18X1.5 EXTERNAL THREAD EURO PUSH-PULL (9100818G) (ISO 7241-A) WARYŃSKI QUICK HYDRAULIC CONNECTOR M18X1.5 EXTERNAL THREAD EURO PUSH-PULL (9100818G) (ISO 7241-A) WARYŃSKI

High-quality Waryński hydraulic quick connector - EURO socket (PUSH-PULL).

The most popular hydraulic quick connectors with a very wide range of applications.

This type of quick connector socket protects against cracking/breaking hydraulic hose and loss of hydraulic oil if it is unintentional tension - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing

in the tractor using the locking sleeve).

*Specification:

*Operating temperature - from -25°C to +120°C

*Thread - External M18x1.5

*Max working pressure - 25.0 Mpa / 250 bar

*Standard - (EURO), ISO-7241-A (ISO-A)

*Type - PUSH-PULL socket

*Cone - thread - 12L (12mm)

*Fits plugs - WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9 100820W

*Fits the cover - RM-GNIA12Z, 5049004EURO

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand. ,WIAM14SZ

WIAM16SZ WIAM16SZL WIAM18SZ WIAM18SZL WIAM22SZ WIAM22SZL WIAM20SZ WIAR12SW 9100820W 9100816W 9100818W 9100822W 9100814W 9100820W,RM-GNIA12Z 5049004EURO

*Producer: Waryński
