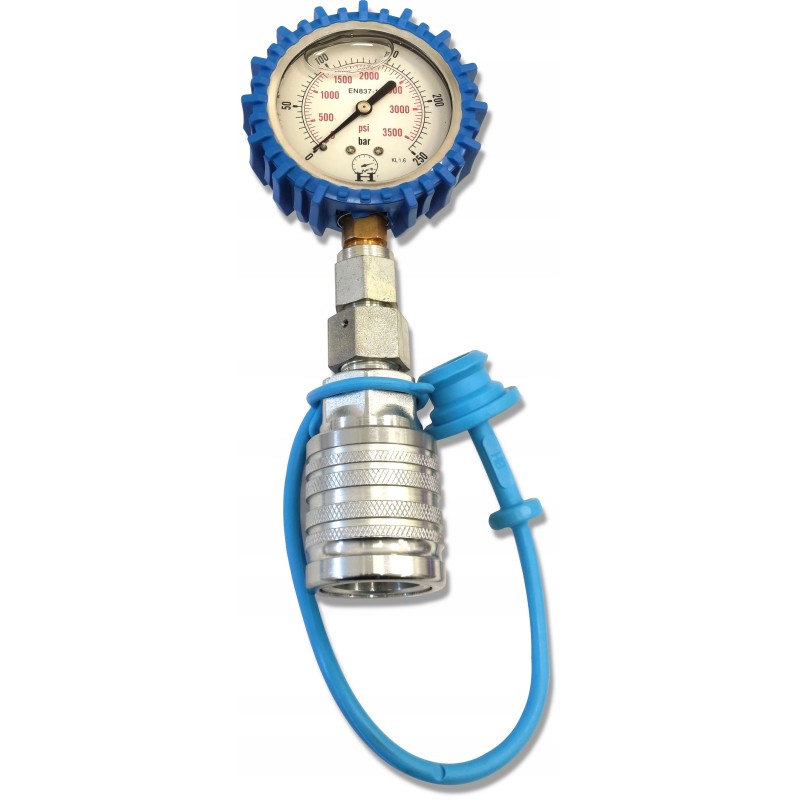

Pressure gauge 250 bar, quick connector, Euro M18 socket

MEASURING SET FOR CHECKING PRESSURE IN A HYDRAULIC SYSTEM SKRAW-MET CODE: [8017] GLYCERINE MANOMETER WITH EURO QUICK CONNECTOR PRESSURE MEASURING RANGE: 0 - 250 Barmanometers intended for measuring liquid pressure in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

Pressure gauge inside filled with glycerin. The glycerine manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerine also allows you to increase the level of measurement accuracy.

It has a plug to equalize the pressure inside the manometer with the atmospheric pressure.

Application:The glycerine manometer perfectly checks used in hydraulically powered machines and devices.

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set components: [0312] Hydraulic manometer, pressure gauge 0 - 250 BAR

[1396] Rubber cover for the manometer 63mm (blue)

[1403] Pressure gauge connector G1/4' - M18x1.5

[1413] Euro socket dust cover cap (blue)

[0164] Quick hydraulic connector EURO socket M18x1.5

Technical data: Pressure measurement range: 0 - 250 Bar

Outer diameter of the clock: 63 mm

Thickness of the clock: 30 mm

Connection port thread [BSP]: 1/4' (requires a special connection available on our other auctions)

Operating temperature: -10°C to +50 °C

Accuracy class: 1.6

Material: steel housing, glass viewfinder

(REVIEW PHOTO - depending on the delivery, the pressure gauge and the rest of the elements may differ visually, but their functionality is identical to the description.)
